Oriental Motor 5IK90GU-CWE Induction Motor, 1PH, 220/230V, 50/60Hz
Oriental Motor 5IK90GU-CWE Induction Motor, 1PH, 220/230V, 50/60Hz

Oriental Motor 5IK90GU-CWE Induction Motor, 1PH, 220/230V, 50/60Hz

Industrial

Motor For sale is a ORIENTAL MOTOR 5IK90GU-CWE INDUCTION MOTOR, 1PH, 220/230V, 5-/60Hz.  The unit appears to be new and unused by the previous owner. The unit may show slight signs of cosmetic wear from the previous owner such as scratching, discoloration,...

$159.99
In Inventory:
1
  • Category: Industrial
Motor

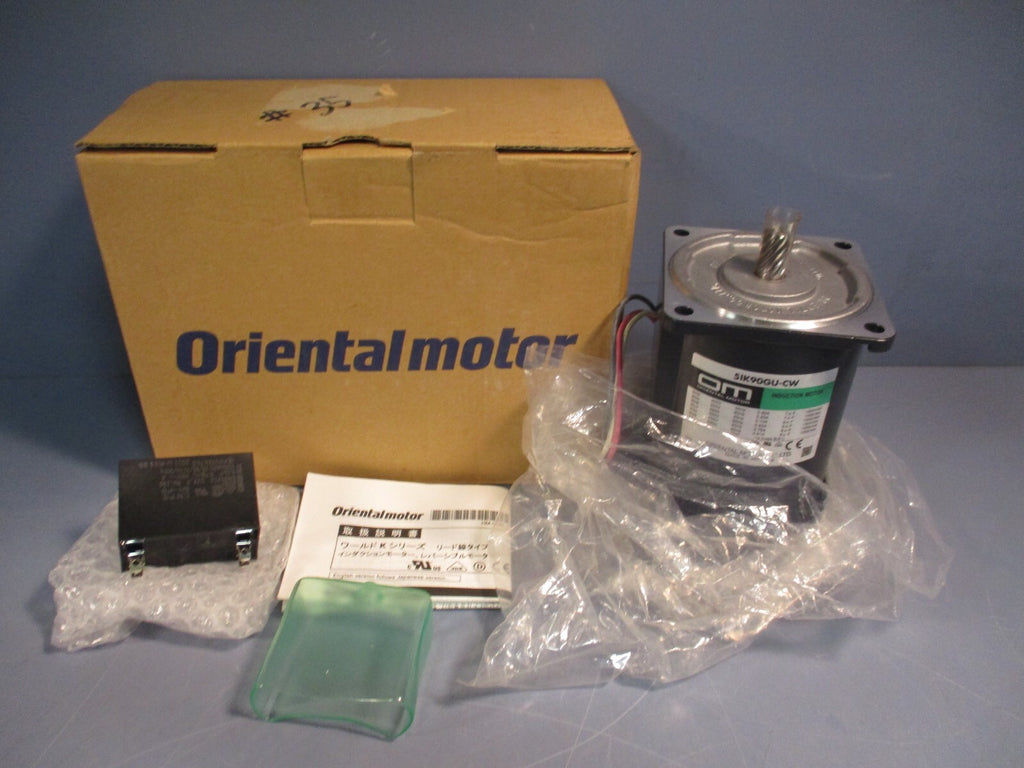

For sale is a ORIENTAL MOTOR 5IK90GU-CWE INDUCTION MOTOR, 1PH, 220/230V, 5-/60Hz.  The unit appears to be new and unused by the previous owner. The unit may show slight signs of cosmetic wear from the previous owner such as scratching, discoloration, shelf wear, paint chipping and/or other markings that should not impact the unit's performance. Overall the unit appears to be in excellent, new, ready to use condition. The unit includes everything shown in photos.


General Specifications:

    Motor Type: AC Induction Motor

    Product Line: World K Series (Legacy)

    Motor Frame Size: 3.54 inches square (90 mm sq.)

    Output Power: 90 W (1/8 HP)

    Shaft Type: Pinion Shaft (Requires a matching 5GU series gearhead, sold separately)

    Connection Type: Lead Wire (Approx. 12 inches / 300 mm length)

Electrical & Performance Ratings:

    Voltage: Single-Phase 220 / 230 VAC

    Frequency: 50 Hz / 60 Hz

    Current:

        0.76 A (at 230V, 50 Hz)

        0.81 A (at 230V, 60 Hz)

    Rated Speed:

        1200 rpm (at 50 Hz)

        1450 rpm (at 60 Hz)

    Rated Torque:

        101.4 oz-in / 6.34 lb-in / 730 mN·m (at 50 Hz)

        84 oz-in / 5.25 lb-in / 605 mN·m (at 60 Hz)

    Starting Torque: 62.5 oz-in / 450 mN·m

    Required Capacitor: 6 µF (Microfarads)

Environmental & Protective Features:

    Overheat Protection: Built-in thermal protector (Automatic return type). Opens at 266ºF ± 9ºF (130ºC ± 5ºC) and closes at 179.6ºF ± 27ºF (82ºC ± 15ºC).

    Insulation Class: Class B (266ºF [130ºC])

    Degree of Protection: IP20

    Ambient Temperature Range: 14ºF to 104ºF (-10ºC to 40ºC), non-freezing

    Ambient Humidity: 85% maximum (non-condensing)

    Safety Approvals: Bears the CE marking; recognized by UL, CSA, and EN standards.

Thank you for looking and please let us know if you have any questions.
