4 New Isostatic CB1012-16 CB101216 Bronze Bearing Bushing Sleeve 0.5000 ID New!!

Industrial

Bearing Sleeve Bronze For sale is 4 New Isostatic CB1012-16 Bearing Sleeve Bushing Bronze ID 0.5000 OD 0.6250" LG 1.0000. This item is New out of the package you will receive exactly what is pictured. This item may show signs...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Bearing Sleeve Bronze

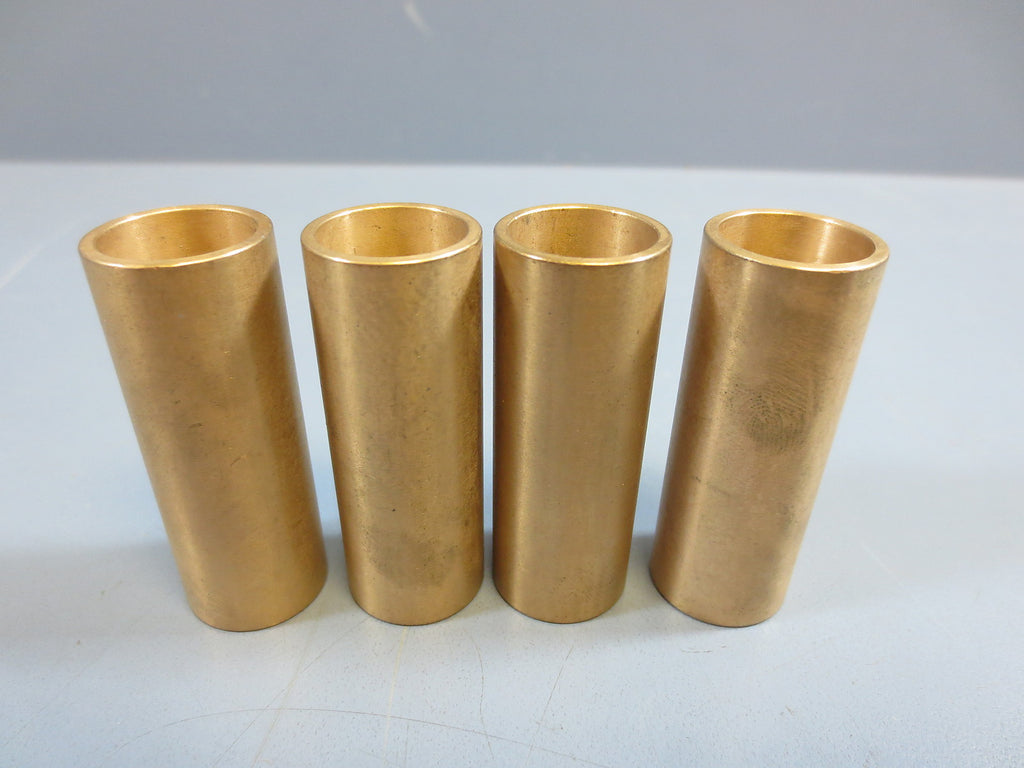

For sale is 4 New Isostatic CB1012-16 Bearing Sleeve Bushing Bronze ID 0.5000 OD 0.6250" LG 1.0000. This item is New out of the package you will receive exactly what is pictured. This item may show signs of shelf wear or other cosmetic markings such as stickering, scratches or scrapes from the previous owner. Overall this item is in Excellent condition.

Shipping:

Shipping represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
