5.1cm fl 2.0" Domino Laser Lens - New
Laser Lens
5.1cm fl 2.0" Domino Laser Lens - New
Industrial
Laser Lens For Sale is a 5.1cm fl 2.0" Domino Laser Lens. This item is new and unused with factory protective film on the lens. The overall condition of this item is excellent. Shipping: Charged according to location. Sales tax...
$187.19
×
Freight Quote
- Category: Industrial
Laser Lens

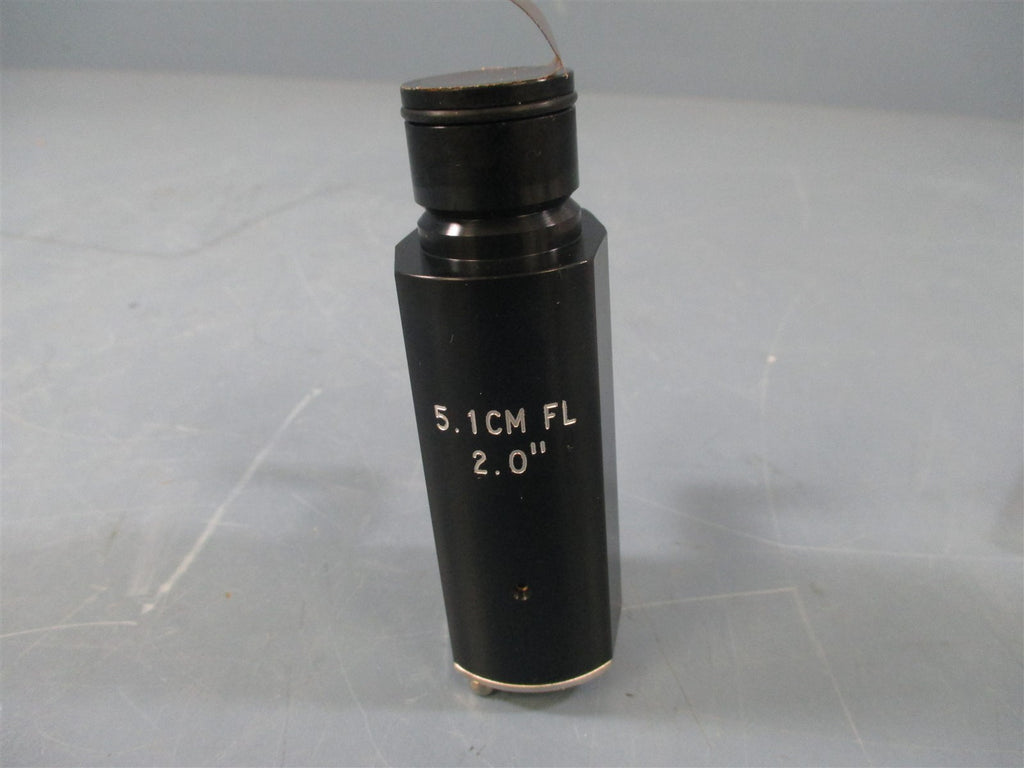

For Sale is a 5.1cm fl 2.0" Domino Laser Lens. This item is new and unused with factory protective film on the lens. The overall condition of this item is excellent.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions
Please note, what is pictured is what is included with the listing.
