Allen Bradley 1326AB-B420E Series B 3K RPM AC Servo Motor
Allen Bradley 1326AB-B420E Series B 3K RPM AC Servo Motor
Industrial
Servo Motor For sale is a Allen Bradley 1326AB-B420E, Series B, 3K RPM, AC Servo Motor. This motor appears to be unused as there are no signs of mounting or scratches on the shaft. There are signs of shelf wear/shipping...
$1,349.99
×
Freight Quote
- Category: Industrial
Servo Motor

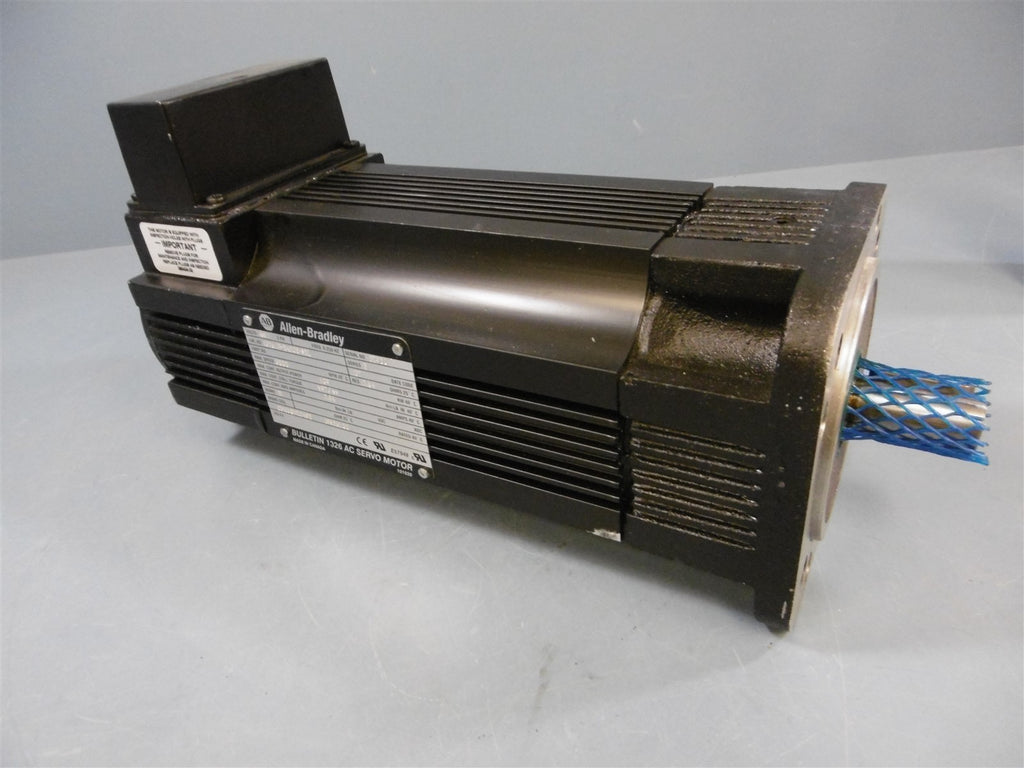

For sale is a Allen Bradley 1326AB-B420E, Series B, 3K RPM, AC Servo Motor. This motor appears to be unused as there are no signs of mounting or scratches on the shaft. There are signs of shelf wear/shipping marks including scuffs, paint chips and light scratches. There is no sign of mounting on the connections. Overall the condition of this motor is very good, aside from the cosmetic markings. Please refer to the photos for further specifications.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
