Allen Bradley 1489-A1C3000 Ser. A 30 Amp Circuit Breaker 240VAC 48 VDC
Industrial
Breaker For sale is one Allen Bradley circuit breaker, model 1489-A1C3000. Item is new in its original package, but the box shows signs of shelfwear and remnants of stickers from the previous owner. The unit inside remains unaffected.Issue Nop. AB-5321...
$19.19
×
Freight Quote
- Category: Industrial
Breaker

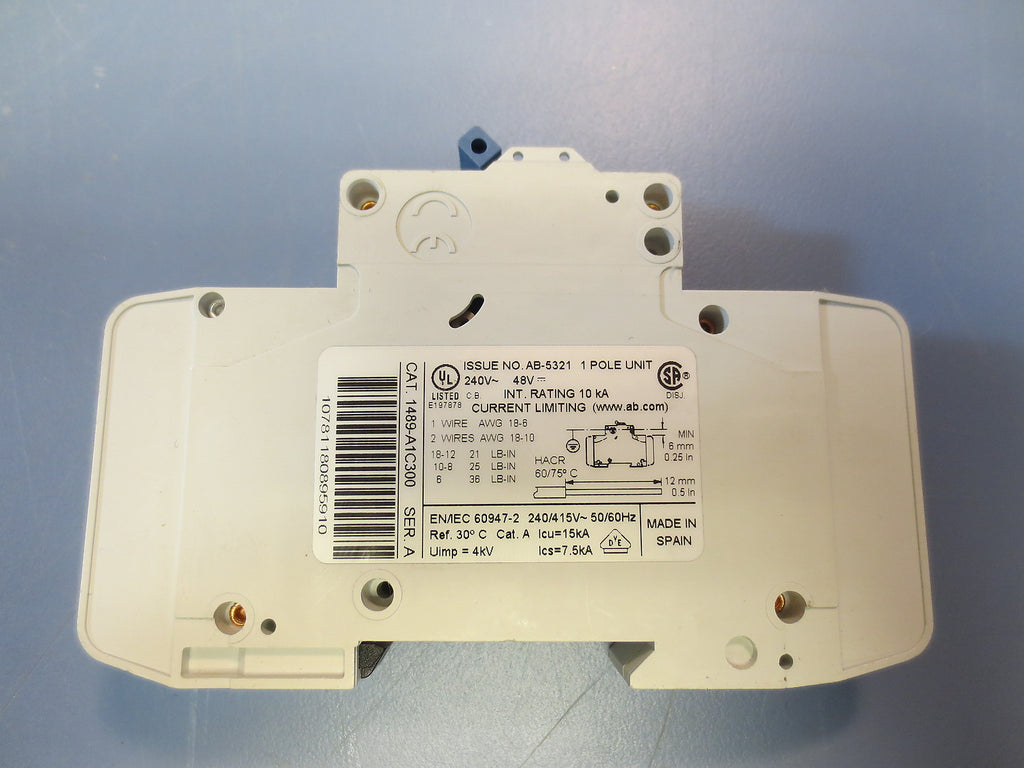

For sale is one Allen Bradley circuit breaker, model 1489-A1C3000. Item is new in its original package, but the box shows signs of shelfwear and remnants of stickers from the previous owner. The unit inside remains unaffected.
Issue Nop. AB-5321 1 Pole Unit
240 VAC 48 VDC
Int Rating 10 kA
40 Deg C 240 VAC 30 A
Shipping:
Shipping represents shipping within the lower 48 States ONLY, insurance included.
All others will be charged according to their location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
