Allen Bradley 1770-SC Station Connector Enclosure Used

Industrial

Station Connector For sale is an Allen Bradley 1770-SC Station Connector Enclosure. The item is used and came from a working environment. Some signs of wear, use, scratching, marking, a bent mounting tab and/or discoloration may show from the previous owner. None...

$11.51

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Station Connector

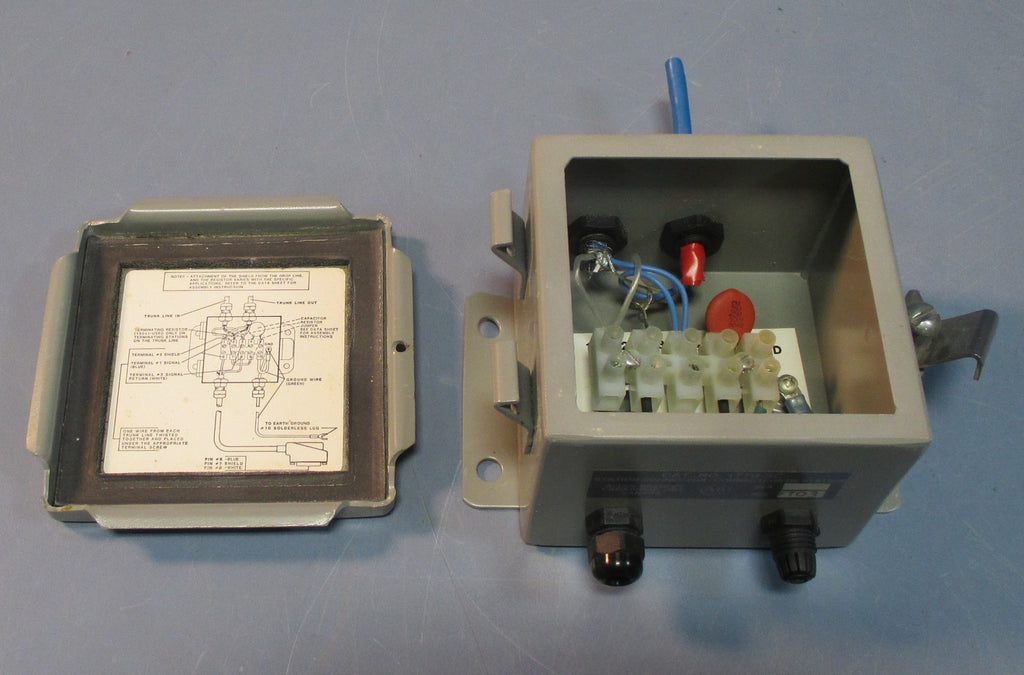

For sale is an Allen Bradley 1770-SC Station Connector Enclosure. The item is used and came from a working environment. Some signs of wear, use, scratching, marking, a bent mounting tab and/or discoloration may show from the previous owner. None of these slight imperfections will impact the performance of the product. Overall the connector appears complete and is believed in good, ready to use condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
