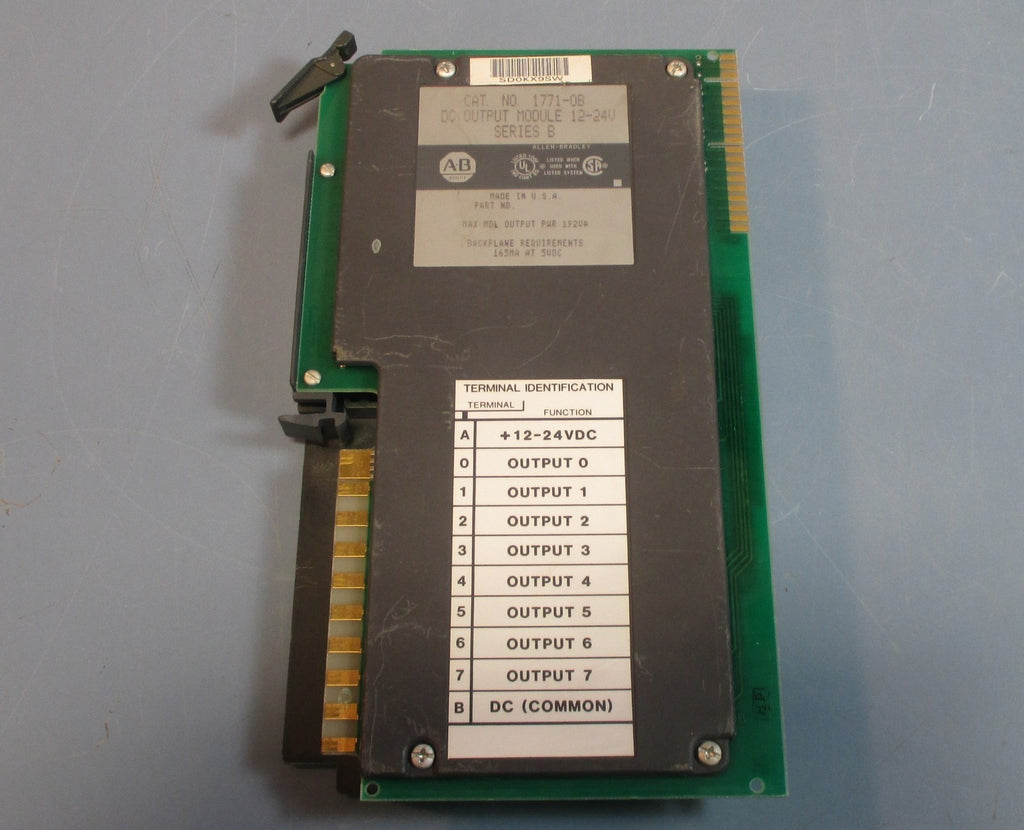

Allen Bradley 1771-0B DC Output Module 12-24V Series B Card Used
Industrial
Output Module For sale is an Allen Bradley 1771-0B DC Output Module 12-24V Series B Card. The card is used but came from a working environment and appears in good overall condition. Some signs of use, wear, scratching and/or discoloration...
$22.39
×
Freight Quote
- Category: Industrial
|
Output Module For sale is an Allen Bradley 1771-0B DC Output Module 12-24V Series B Card. The card is used but came from a working environment and appears in good overall condition. Some signs of use, wear, scratching and/or discoloration may appear from the previous owner.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
