Allen Bradley 22B-CCB Communication Adapter Cover Frame B Series B NIB

Industrial

Adapter Cover For sale is an Allen Bradley PowerFlex 40 22B-CCB Communication Adapter Cover Frame B Series B. The cover is new and still in the original box. The box may show some light signs of shelf wear from the previous...

$29.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Adapter Cover

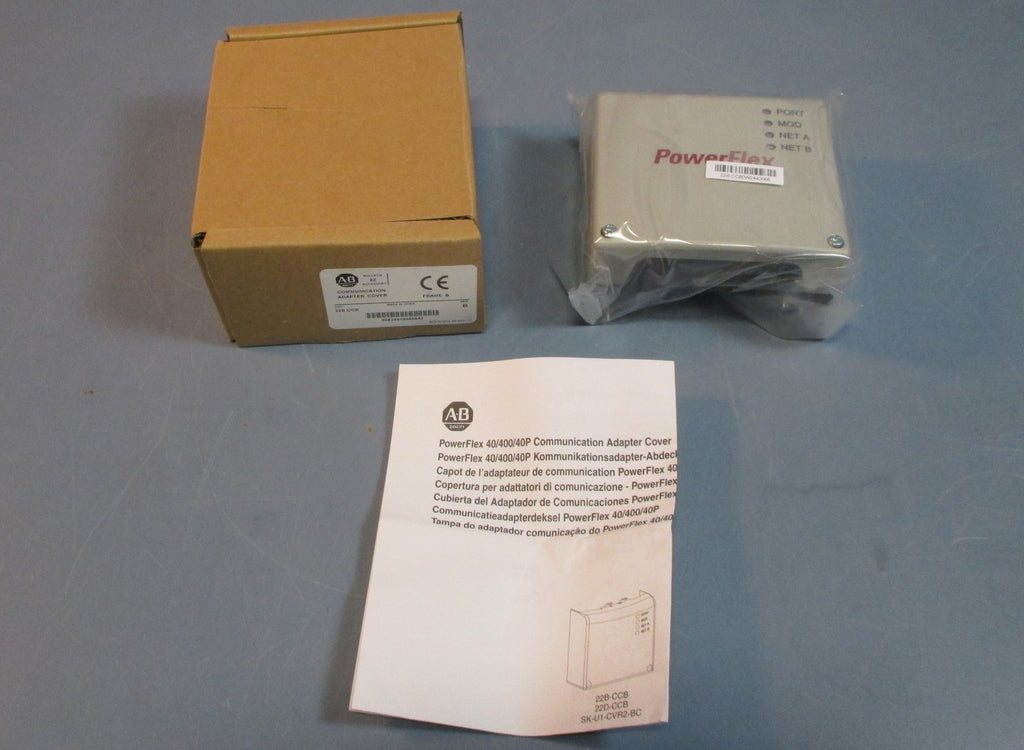

For sale is an Allen Bradley PowerFlex 40 22B-CCB Communication Adapter Cover Frame B Series B. The cover is new and still in the original box. The box may show some light signs of shelf wear from the previous owner. The accessories, instructions and cover will be included in the box. The cover remains in excellent, ready to use condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
