Allen Bradley 871C-D8R18 Inductive Proximity Switch Sensor 8mm Series A Used
Industrial
Proximity Sensor For Sale is an Allen Bradley 871C-D8R18 Inductive Proximity Switch Sensor 8mm Series A. The sensor appears to be used and came from a working environment. Some signs of wear, use, scratching, marking and/or discoloration may show from...
$15.99
×
Freight Quote
- Category: Industrial
|

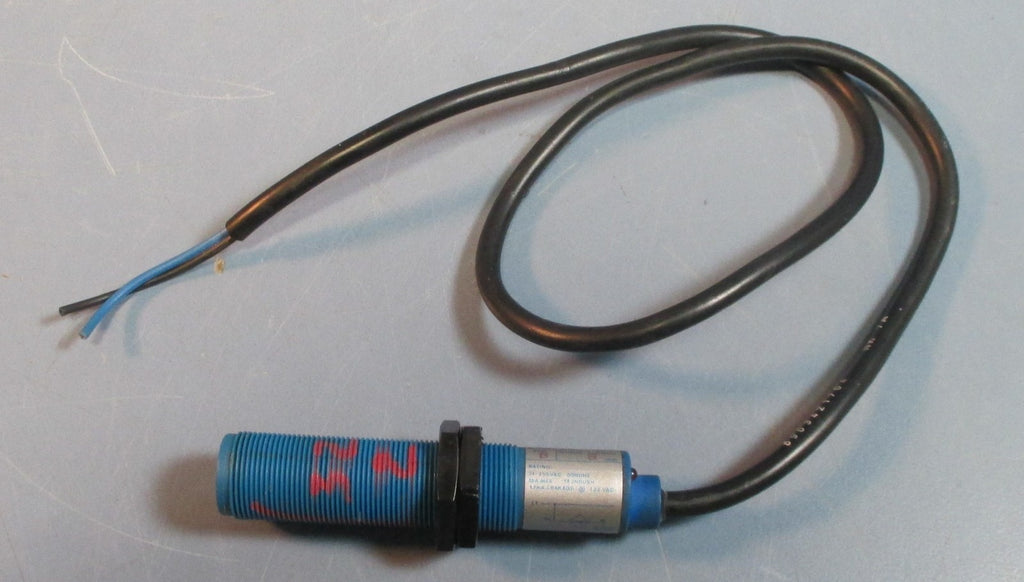

Proximity Sensor For Sale is an Allen Bradley 871C-D8R18 Inductive Proximity Switch Sensor 8mm Series A. The sensor appears to be used and came from a working environment. Some signs of wear, use, scratching, marking and/or discoloration may show from the previous owner. None of these slight imperfections that show will impact the performance of the product. The wires have been cut but plenty remains for stripping and re-connection. Overall the sensor remains in very good condition and believed functioning perfectly.
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
