Allen Bradley PowerFlex 70 20AD3P4A0AYNANNN 1.5kW / 2 HP AC Drive Ser A
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.

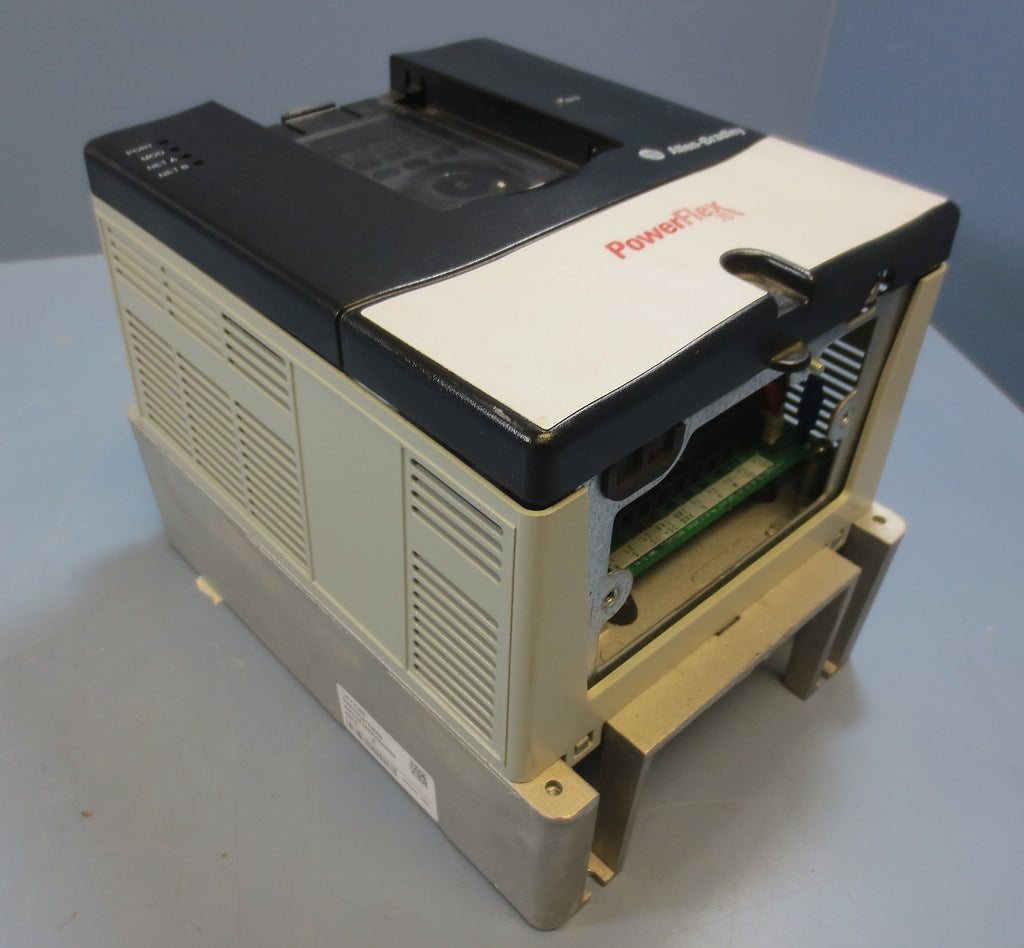

Allen Bradley PowerFlex 70 20AD3P4A0AYNANNN 1.5kW / 2 HP AC Drive Ser A
Industrial
AC Drive For sale is one Allen Bradley PowerFlex 70 AC Drive, model 20AD3P4A0AYNANNN. Item is used, but in good conditoin. Unit shows signs of cosmetic wear, including scratches and scrapes, as well as markings from the previous owner. This...
$159.99
×
Freight Quote
- Category: Industrial
|
AC Drive For sale is one Allen Bradley PowerFlex 70 AC Drive, model 20AD3P4A0AYNANNN. Item is used, but in good conditoin. Unit shows signs of cosmetic wear, including scratches and scrapes, as well as markings from the previous owner. This will not affect the unit's function. Series A 400 V / 480 V Class Normal Duty Power: 1.5 kW / 2 HP Input: Output:
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
