Amperite DOD Timer 0.6-60 Sec W RB08-PC 600V 10A Amp 8 Pin Relay Socket Used

Industrial

8 Pin Relay Socket & Timer For sale is One Used Amperite DOD Series Timer 0.6 - 60 Sec 24V Vdc with 1 RB08-PC 8 Pin Relay Socket 600V 10 Amp. This item is Used you will receive exactly what...

$14.71

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

8 Pin Relay Socket & Timer

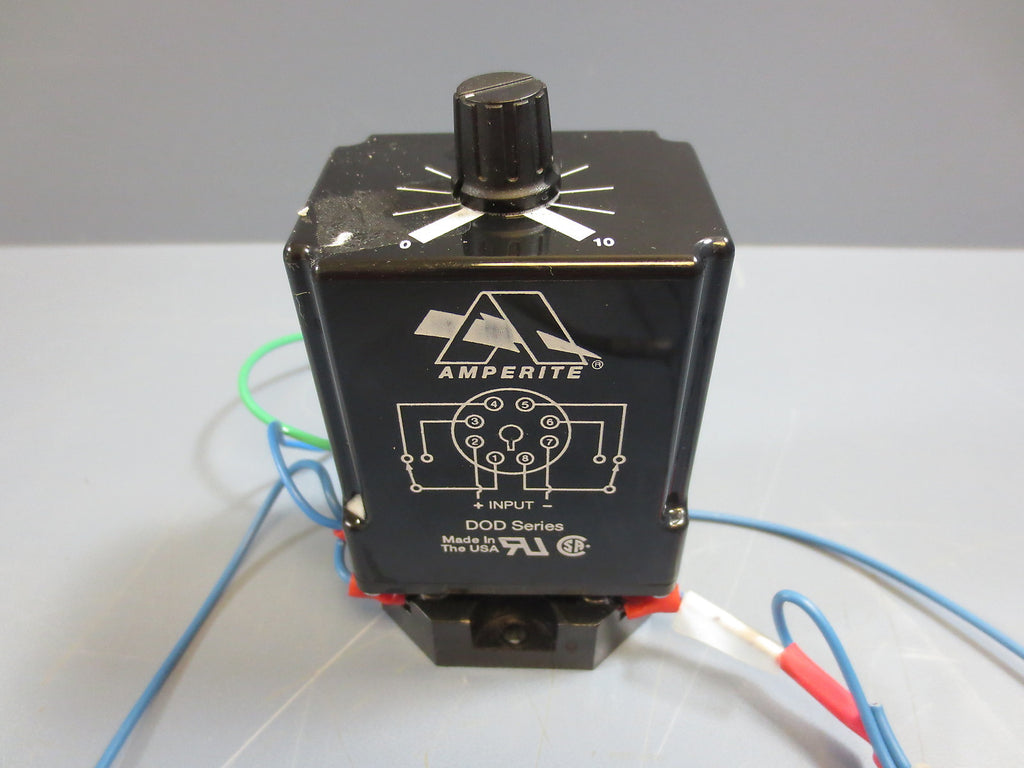

For sale is One Used Amperite DOD Series Timer 0.6 - 60 Sec 24V Vdc with 1 RB08-PC 8 Pin Relay Socket 600V 10 Amp. This item is Used you will receive exactly what is pictured. This item may have some Shelf Wear and other Cosmetic Markings such as Scratches or Scrapes from the Previous Owner, Which will Not affect the Unit. Overall this item is in Excellent Condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
