ASCO Solidsaire 2302709 Solenoid Valve Repair Kit NIB
Industrial
Valve Repair Kit For Sale is an ASCO Solidsaire 2302709 Solenoid Valve Repair Kit. The item appears to be new and complete but the bag may not be original to the item. All parts to the kit appear to be...
$19.19
×
Freight Quote
- Category: Industrial
|

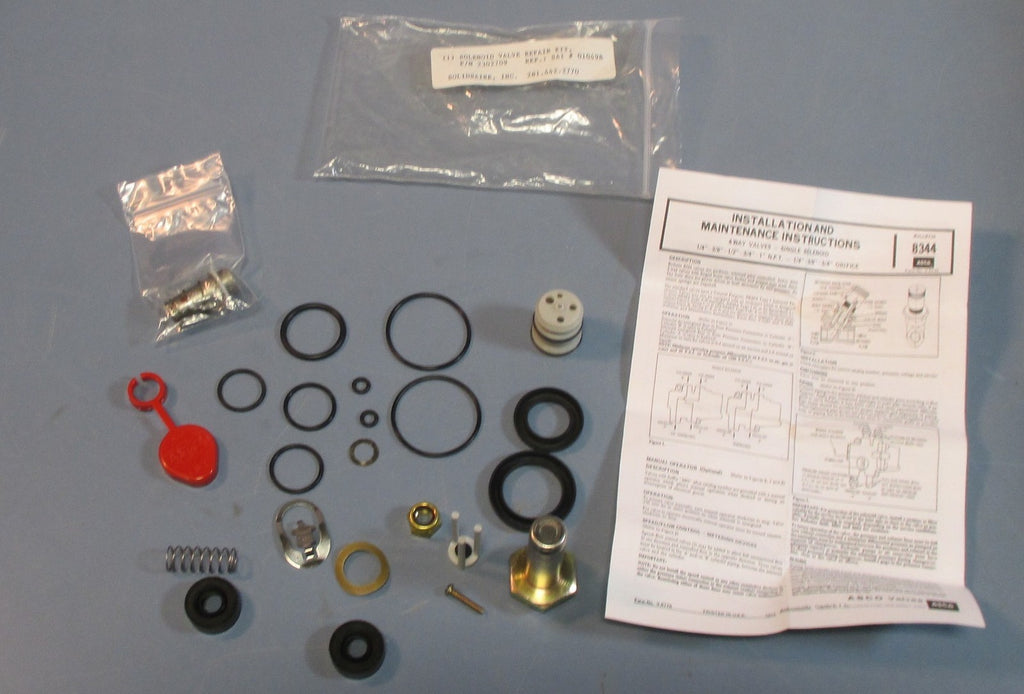

Valve Repair Kit For Sale is an ASCO Solidsaire 2302709 Solenoid Valve Repair Kit. The item appears to be new and complete but the bag may not be original to the item. All parts to the kit appear to be present and remain in excellent overall condition.
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
