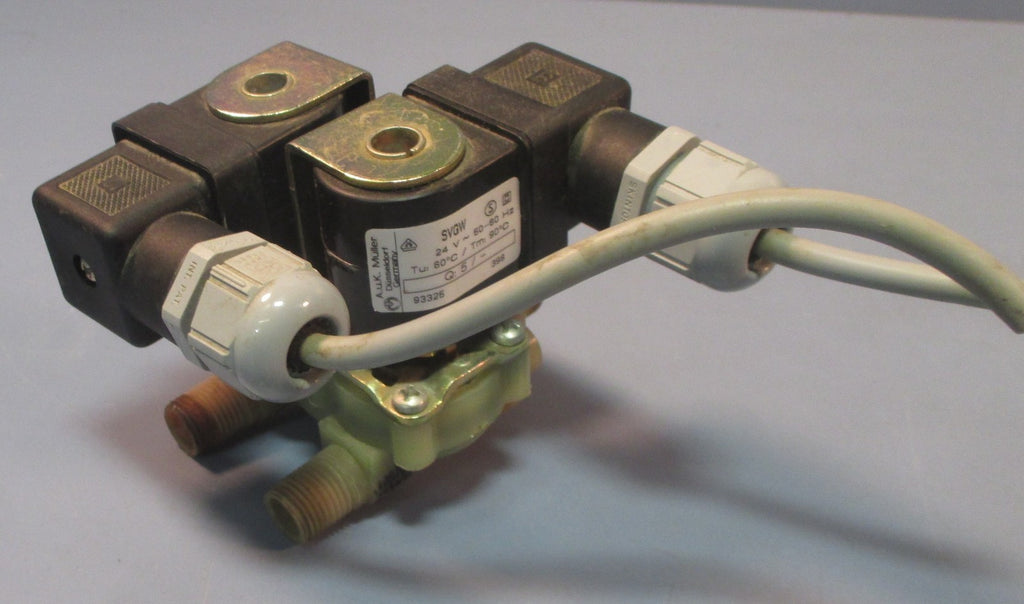

AUK Muller SVGW 93325 Double Valve Assembly w/ Body 24V 50/60Hz Used
Industrial
Valve Assembly For sale is an AUK Muller SVGW 93325 Double Valve Assembly with Valve Body, 24V, 50/60Hz. The assembly is used and came from a working environment. Signs of use, wear and/or discoloration may show from the previous owner. ...
$19.19
×
Freight Quote
- Category: Industrial
|
Valve Assembly For sale is an AUK Muller SVGW 93325 Double Valve Assembly with Valve Body, 24V, 50/60Hz. The assembly is used and came from a working environment. Signs of use, wear and/or discoloration may show from the previous owner. The 2 wire cables have been cut going to the valves. Overall the assembly remains in good condition.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
