Aurora MM-10KZ MM10KZ Rod End Bearing 0.6250" ID 5/8" Dia Shank New!!!

Industrial

Rod End Bearing For sale is 1 New Aurora MM-10KZ Rod End Bearing, Inner Diameter 0.6250 Diameter Shank 5/8". This item is New out of the bag, it may have some shelf wear and or other cosmetic markings from the...

$15.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Rod End Bearing

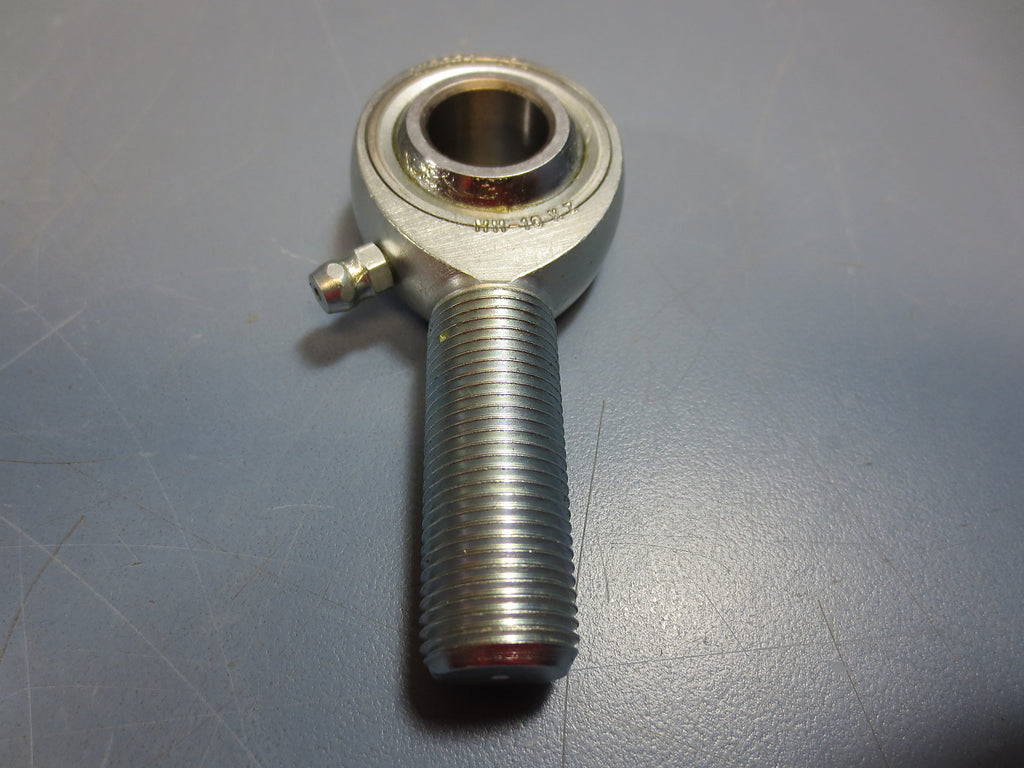

For sale is 1 New Aurora MM-10KZ Rod End Bearing, Inner Diameter 0.6250 Diameter Shank 5/8". This item is New out of the bag, it may have some shelf wear and or other cosmetic markings from the previous owner such as stickering, scratches or scrapes this will Not affect the unit. Overall this item is in excellent and ready to use condition.

Shipping:

Shipping represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
