Bag 10 CZ Labs Part: 311 RF Crimp Type Connector for RG-59 & RG-62 20 Ga Pin New

Industrial

RF Connector For sale is a Bag of 10 CZ Labs Part: 311 RF Crimp Type Connector for RG-59 and RG-62, 20 GA Pin. The items are new and still in the bag in excellent condition. They are 3 piece...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

RF Connector

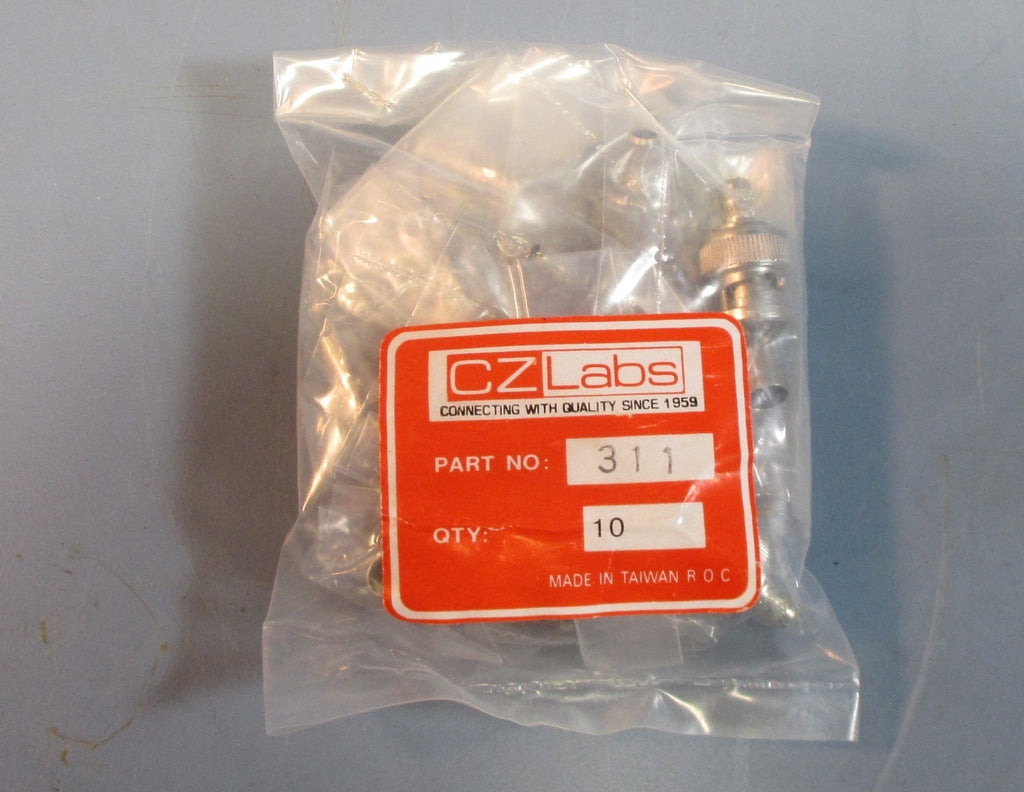

For sale is a Bag of 10 CZ Labs Part: 311 RF Crimp Type Connector for RG-59 and RG-62, 20 GA Pin. The items are new and still in the bag in excellent condition. They are 3 piece crimp type RF Connectors.

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
