Bag of 1000+ Nylon Washers 0.119In ID, 0.282In OD, 0.052In Width
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Bag of 1000+ Nylon Washers 0.119In ID, 0.282In OD, 0.052In Width
Industrial

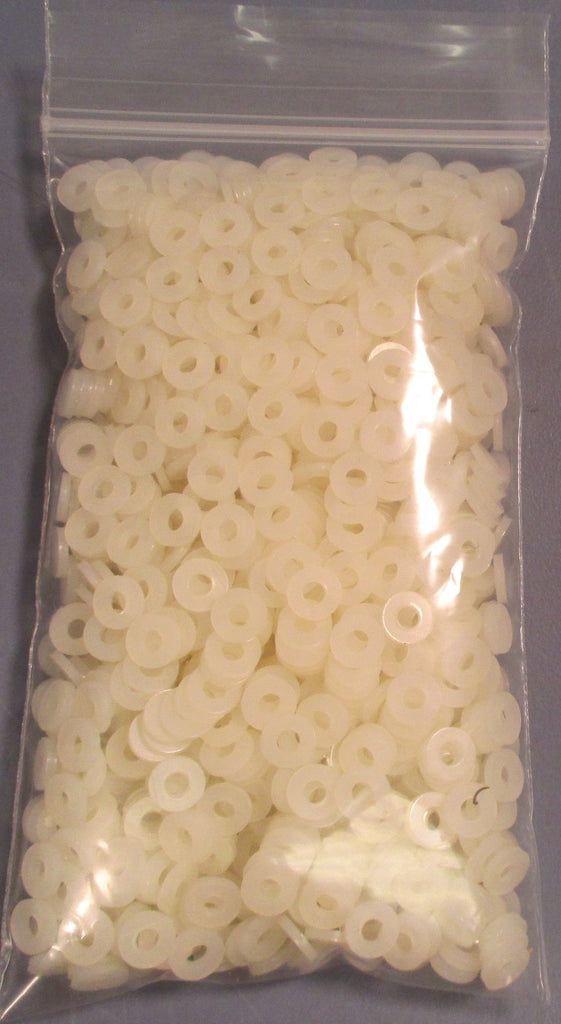

Nylon Washer You are bidding on a bag of 1000+ new Nylon Washers 0.119in ID, 0.282in OD, 0.052in Width. Items are not in the original packaging and measurements are withing 0.01in. Shipping: Represents shipping within the lower 48 States ONLY,...
$11.99
×
Freight Quote
- Category: Industrial
|
Nylon Washer You are bidding on a bag of 1000+ new Nylon Washers 0.119in ID, 0.282in OD, 0.052in Width. Items are not in the original packaging and measurements are withing 0.01in.
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
