Bag of 40 Dixon Fittings 3/8" Barb x 3/8" Male NPT Nylon NIB TPN-33

Industrial

Nylon Fittings For sale is a Bag of 40 Dixon TPN-33 Fittings 3/8" Barb x 3/8" Male NPT Nylon. The fittins are new and still in the original package. The bag may show signs of shelf wear, marking, stickering, tearing...

$21.59

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Nylon Fittings

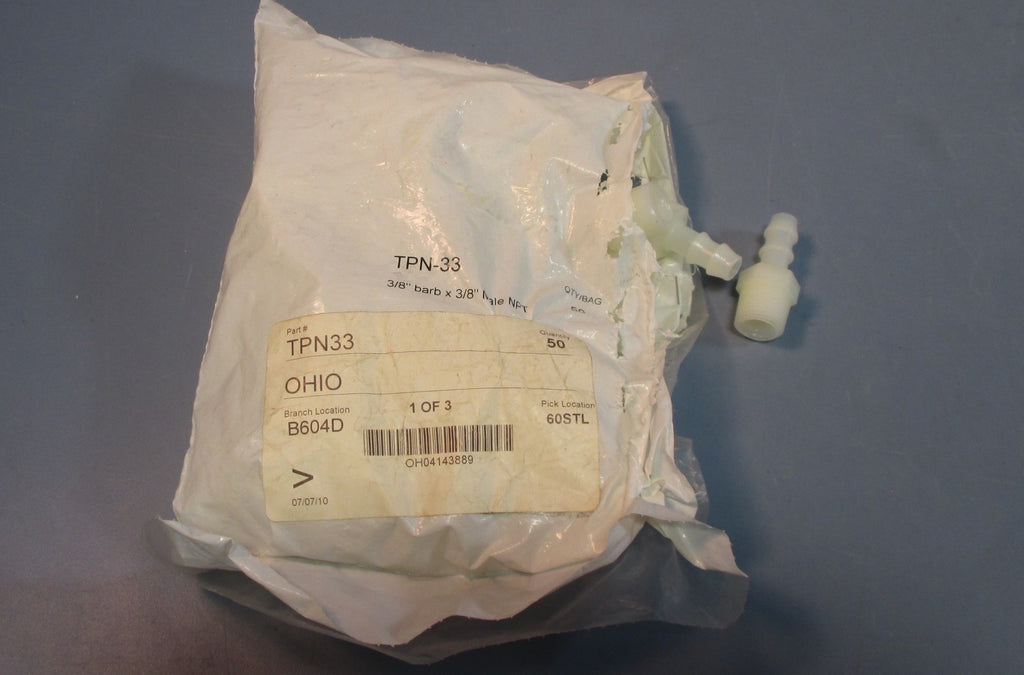

For sale is a Bag of 40 Dixon TPN-33 Fittings 3/8" Barb x 3/8" Male NPT Nylon. The fittins are new and still in the original package. The bag may show signs of shelf wear, marking, stickering, tearing and/or discoloration from the previous owner. Some of the original 50 have been removed by the previous owner but 40 pieces remains. Overall the fittings remain in very good, ready to use condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
