Bag of 50 Allen Bradley RCR05G433JS Composition Resistor 43K Ohm New

Industrial

Composition Resistor You are bidding on a bag of 50 Allen Bradley RCR05G433JS Composition Resistor 43K Ohm. The resistors are new and but not in the original package but remain in very good condition. They have been kept in a...

$25.59

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Composition Resistor

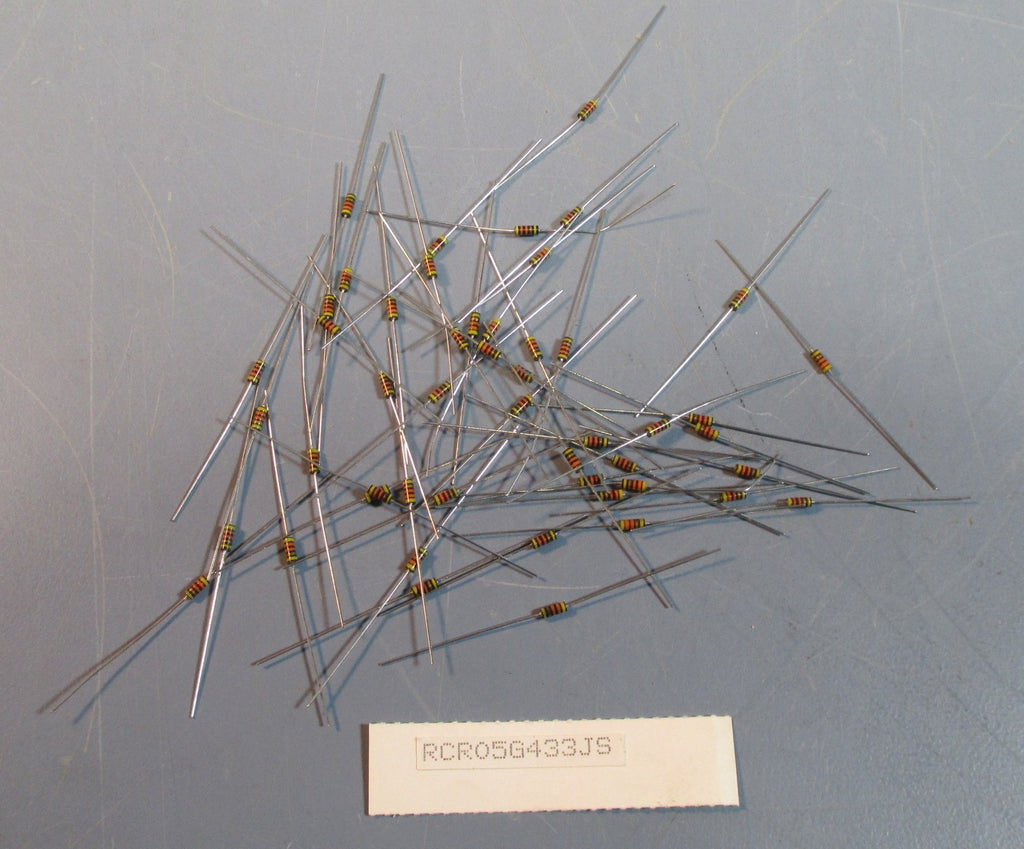

You are bidding on a bag of 50 Allen Bradley RCR05G433JS Composition Resistor 43K Ohm. The resistors are new and but not in the original package but remain in very good condition. They have been kept in a "Statfree," Static dissipative bag for protection.
Resistance: 43 Kohm
Resistance Tolerance: 5%
Power Rating: 0.125W
Diameter: 0.060 IN
Length: 0.150 In

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
