Brubaker 7/8" HSS 1H Acculead 4.761 Professional CNC Resharpened 3FL End Mill

Industrial

End Mill This is a Brubaker 7/8" HSS 1H Acculead 4.761 Professionally CNC Resharpened 3 Flute End Mill. The mill is used but has been resharpened and kept in protective wax. The cutting edge that can be seen by pulling...

$17.91

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

End Mill

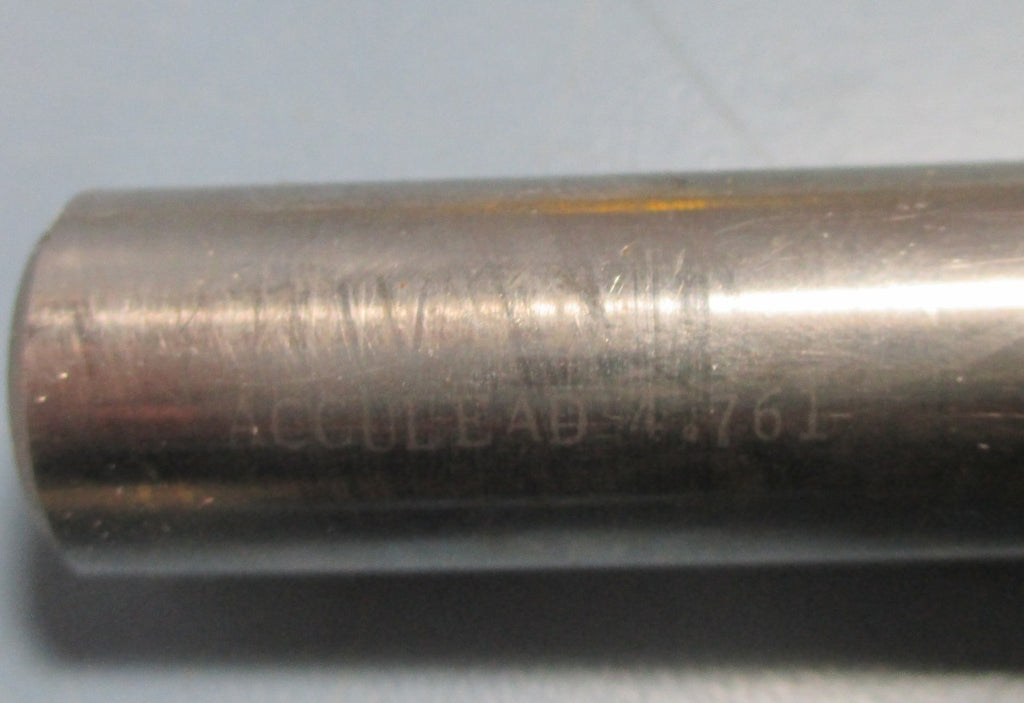

This is a Brubaker 7/8" HSS 1H Acculead 4.761 Professionally CNC Resharpened 3 Flute End Mill. The mill is used but has been resharpened and kept in protective wax. The cutting edge that can be seen by pulling back a bit of the wax appears in excellent condition. Some light signs of wear, use and/or discoloration may appear from the pevious owner. Note that the cutting diameter may be slightly reduced from the sharpening.
Rough Measurements:
Total Length: 4"
Cutting Length: 1.75"
Flute Length: 2"
Shaft Length: 2"
Shaft Dia: 5/8"

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
