Cone Drive MHO20A015-3 Gear Reducer 10:1 Ratio, 2.52 HP, 3000 RPM Input New
Cone Drive MHO20A015-3 Gear Reducer 10:1 Ratio, 2.52 HP, 3000 RPM Input New
Industrial
Gear Reducer For sale is a Cone Drive MHO20A015-3 Gear Reducer 10:1 Ratio, 2.52 HP and 3000 RPM Input. The reducer is new but no longer in the original package. Some cosmetic imperfections may show from the previous owner and...
$191.99
×
Freight Quote
- Category: Industrial
Gear Reducer

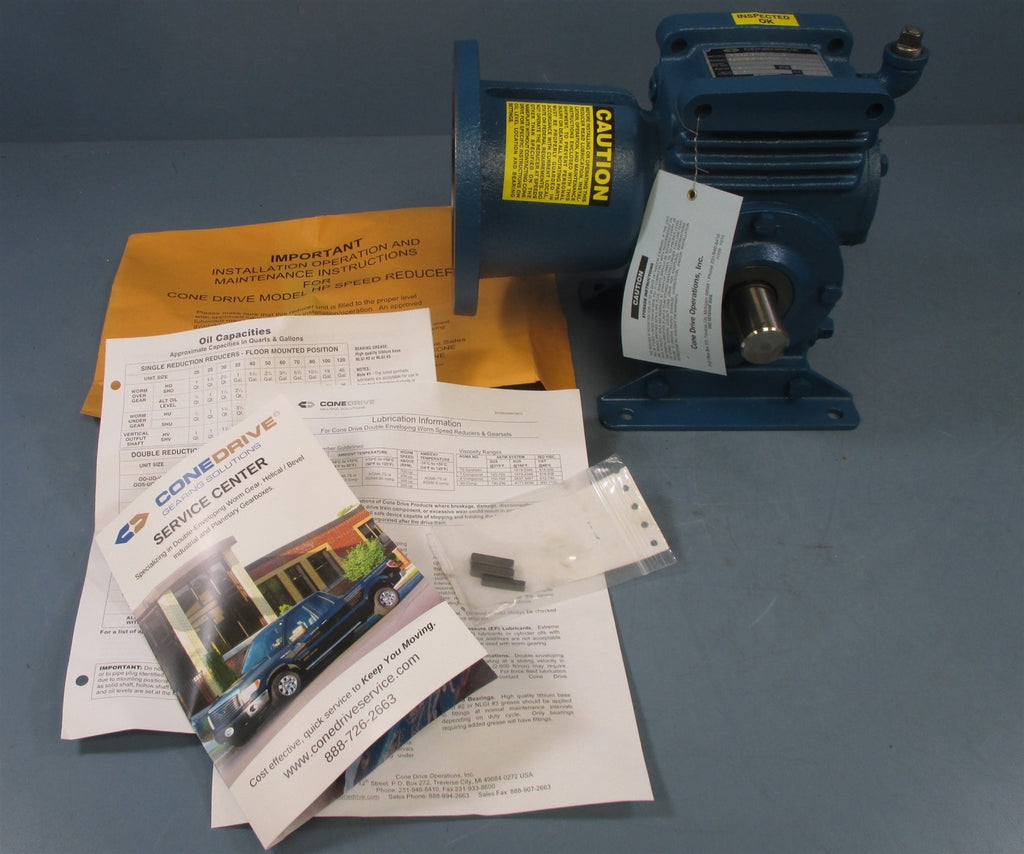

For sale is a Cone Drive MHO20A015-3 Gear Reducer 10:1 Ratio, 2.52 HP and 3000 RPM Input. The reducer is new but no longer in the original package. Some cosmetic imperfections may show from the previous owner and transport but nothing that will impact performance. Overall the reducer remains in excellent condition and will come with what is seen in the photos.
Through Shaft OD: 1-1/8"
End Shaft OD: 5/8"
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
International Buyers – Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
