Cooper Crouse Hinds X57 Conduit Body Outlet Box 1-1/2" Ports NIB
Powered by eBay Turbo Lister
The free listing tool. List your items fast and easy and manage your active items.
Cooper Crouse Hinds X57 Conduit Body Outlet Box 1-1/2" Ports NIB
Industrial
Conduit Body For sale is a Cooper Crouse Hinds X57 Conduit Body 4 Way Outlet Box 1-1/2" Ports. The body is new and still in the original box. The box may show signs of shelf wear, marking, stickering and/or discoloration from...
$19.19
×
Freight Quote
- Category: Industrial
|

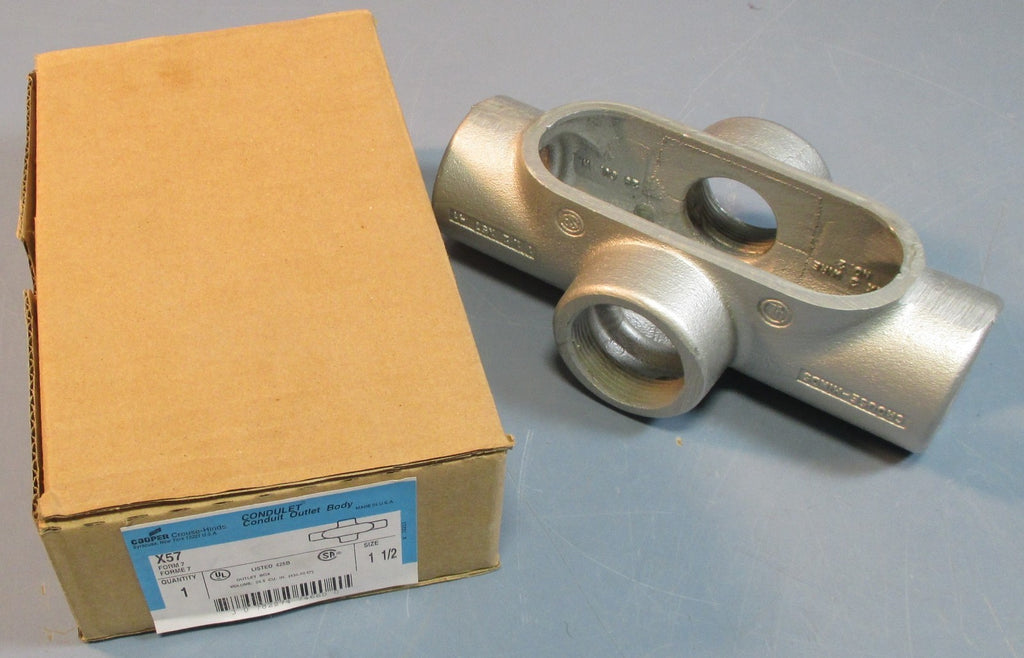

Conduit Body For sale is a Cooper Crouse Hinds X57 Conduit Body 4 Way Outlet Box 1-1/2" Ports. The body is new and still in the original box. The box may show signs of shelf wear, marking, stickering and/or discoloration from the previous owner. The body remains in excellent, ready to use condition.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
