Cutler-Hammer E58CAL18T111R2 Ser C1, 10-30 VDC Photoelectric Tubular Sensor NOS

Industrial

Photoelectric Sensor For sale is a Cutler-Hammer E58CAL18T111R2 Series C1, 10-30 VDC Photoelectric Tubular Sensor. The sensor is new and still in the original box. The box may show some signs of shelf wear, tearing, marking and/or discoloration from the...

$17.91

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Photoelectric Sensor

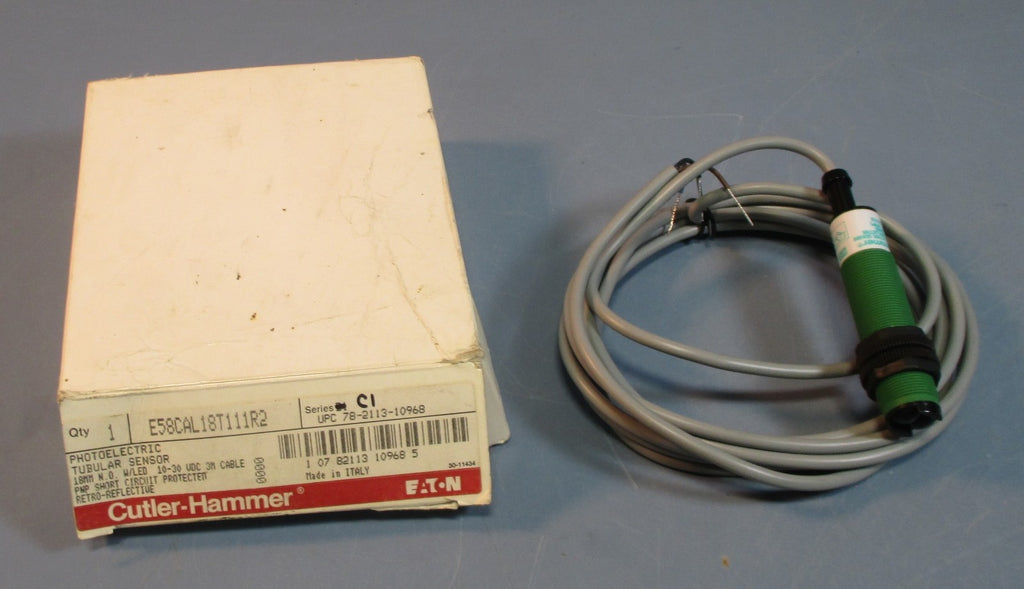

For sale is a Cutler-Hammer E58CAL18T111R2 Series C1, 10-30 VDC Photoelectric Tubular Sensor. The sensor is new and still in the original box. The box may show some signs of shelf wear, tearing, marking and/or discoloration from the previous owner. The instructions may or may not be included in the box. Overall the sensor remains in excellent, ready to use condition.
18mm N.O. w/ LED
Retro-Reflective

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
