Dodge 117108 3020 x 1-3/8 KW Taper- Lock Bushing NOS

Industrial

Taper-Lock Bushing For sale is a Dodge 117108, 3020 x 1-3/8 KW Taper-Lock Bushing. The item is new old stock and still in the original box. The box may show signs of shelf wear, marking, taping and/or discoloration from the...

$11.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Taper-Lock Bushing

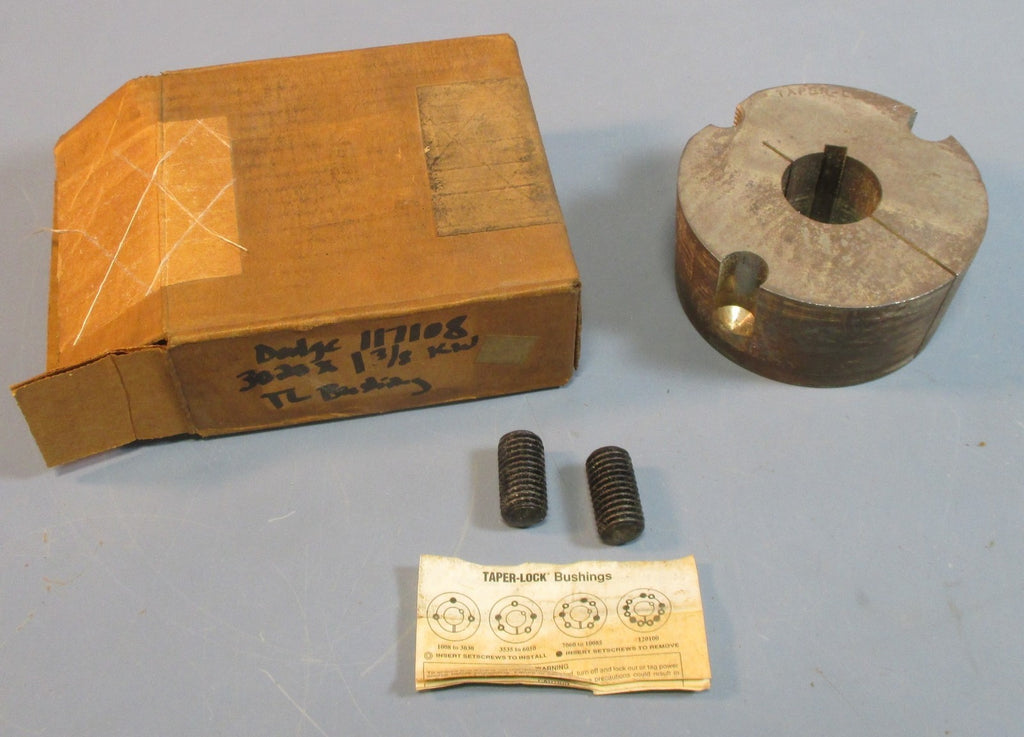

For sale is a Dodge 117108, 3020 x 1-3/8 KW Taper-Lock Bushing. The item is new old stock and still in the original box. The box may show signs of shelf wear, marking, taping and/or discoloration from the previous owner. The bushing may show signs of surface rust but nothing that should impact the overall performance of the product. The set screws and instructions will be included in the box. Overall the bushing remains in very good condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
