Dodge Quantis BF383LN56C 17.99:1 1750RPM 1308TQ Out 2.02HP In A1 Mount
Dodge Quantis BF383LN56C 17.99:1 1750RPM 1308TQ Out 2.02HP In A1 Mount
Industrial
Reducer For sale is a Dodge Quantis BF383LN56C, 17.99:1, 1750RPM, 1308TQ Out, 2.02HP In, A1 Mount, 1.25" Bore. This reducer appears to be in excellent overall condition with no signs of use or mounting. The original manual and hardware is...
$129.99
×
Freight Quote
- Category: Industrial
Reducer

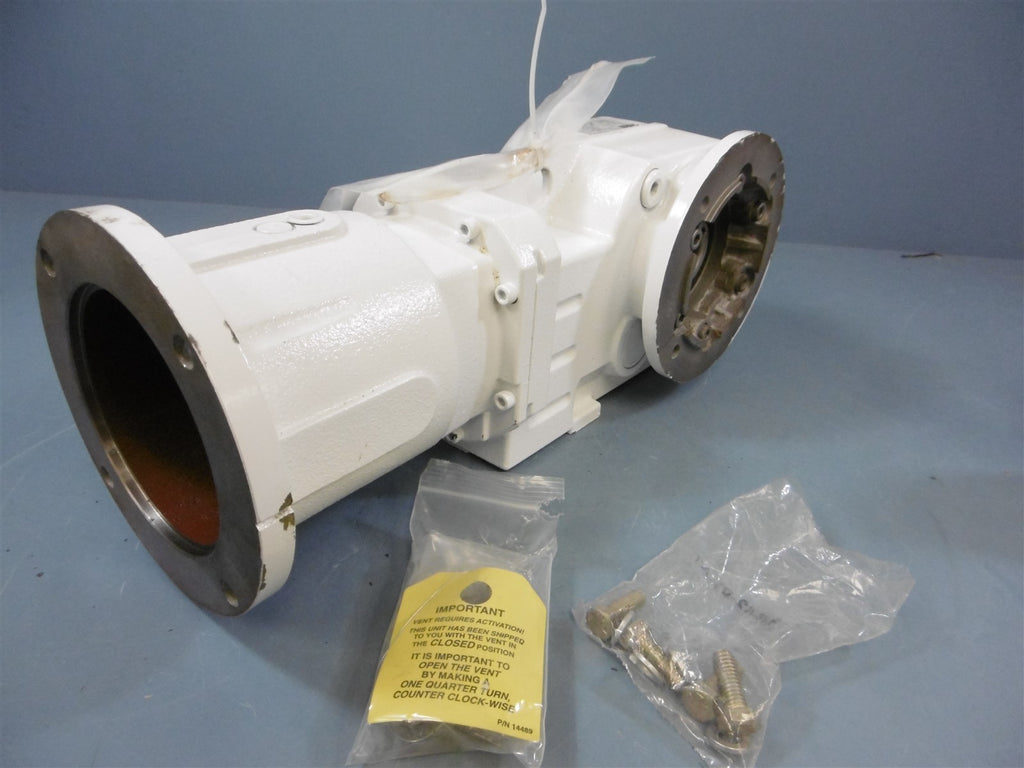

For sale is a Dodge Quantis BF383LN56C, 17.99:1, 1750RPM, 1308TQ Out, 2.02HP In, A1 Mount, 1.25" Bore. This reducer appears to be in excellent overall condition with no signs of use or mounting. The original manual and hardware is included. The reducer shows signs of scuffs, grease marks, paint chips and scratches due to shelf wear.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
