Fafnir IR Torrington SCJT 5/8, 2 Bolt Flange, Max RPM 7370 Flange Mount Bearing
Industrial

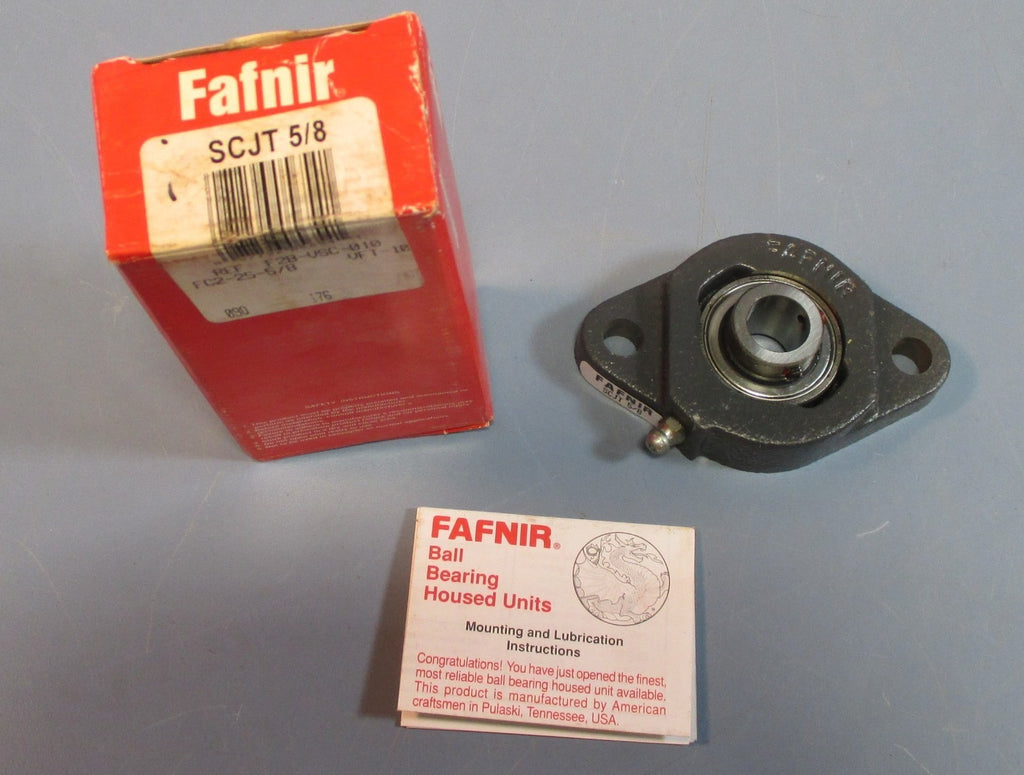

Flange Mount Bearing For sale is a Fafnir IR Torrington SCJT 5/8, 2 Bolt Flange, Max RPM 7370 Flange Mount Bearing. The bearing is new and still in the original box. The box may show signs of shelf wear, marking,...
$12.79
×
Freight Quote
- Category: Industrial
|
Flange Mount Bearing For sale is a Fafnir IR Torrington SCJT 5/8, 2 Bolt Flange, Max RPM 7370 Flange Mount Bearing. The bearing is new and still in the original box. The box may show signs of shelf wear, marking, light tearing and/or discoloration. The instructions may or may not be included in the box. Overall the bearing remains in excellent condition showing only some light signs of discoloration if any.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
