Flender Z48-KTC-56 Gear Reducer 31.77:1 Ratio 1-1/4" Shaft Rotex 19 Coupler New
Flender Z48-KTC-56 Gear Reducer 31.77:1 Ratio 1-1/4" Shaft Rotex 19 Coupler New
Industrial

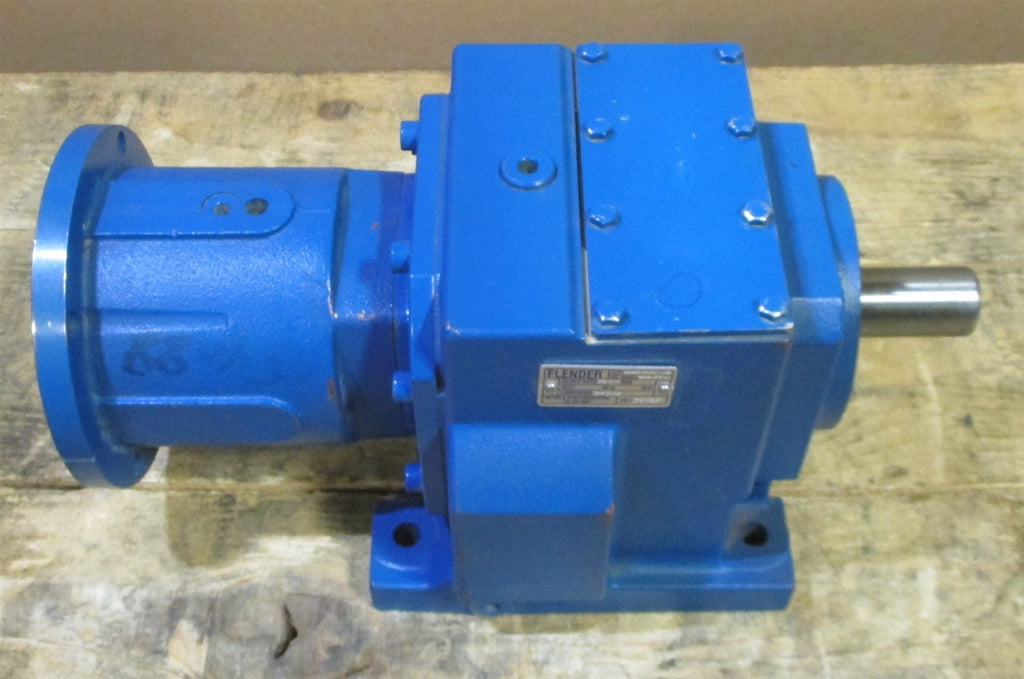

Gear Reducer For sale is a Flender Z48-KTC-56 Gear Reducer 31.77:1 Ratio, 1-1/4" Shaft OD and Rotex 19 Coupler. The reducer is new showing no signs of use, mounting, wear or connection. Some signs of shelf wear, stickering, marking and/or...
$215.99
×
Freight Quote
- Category: Industrial
Gear Reducer
For sale is a Flender Z48-KTC-56 Gear Reducer 31.77:1 Ratio, 1-1/4" Shaft OD and Rotex 19 Coupler. The reducer is new showing no signs of use, mounting, wear or connection. Some signs of shelf wear, stickering, marking and/or discoloration may show from the previous owner and transport but nothing that will impact product performance. Overall this reducer remains in very good, clean condition.
Check Oil Before Use.
No. 480MG. 806-512
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
