GE / General Electric THQB ZZ-7359 3 Pole 20A Circuit Breaker Used

Industrial

Circuit Breaker For sale is a General Electric THQB ZZ-7359, 3 Pole 20A 240VAC Circuit Breaker. The item may have been used by the previous owner or may just show signs of shelf wear and discoloration from not being stored in...

$15.35

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Circuit Breaker

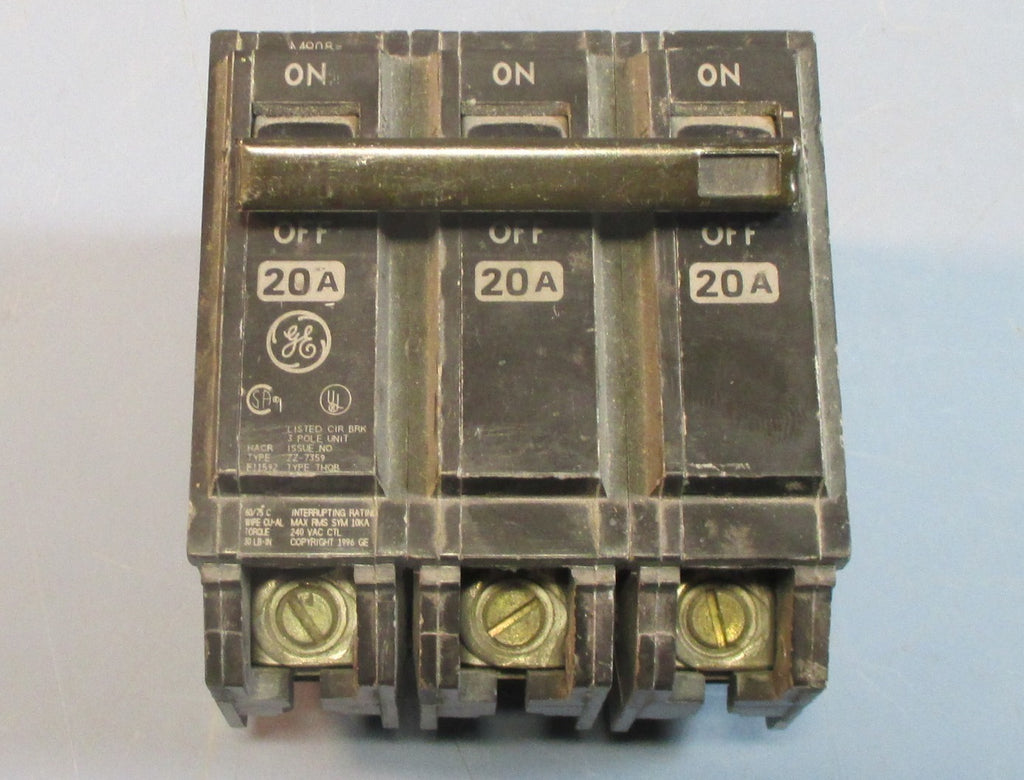

For sale is a General Electric THQB ZZ-7359, 3 Pole 20A 240VAC Circuit Breaker. The item may have been used by the previous owner or may just show signs of shelf wear and discoloration from not being stored in the original packaging. Some light sigs of scratching may show as well but nothing that will impact product performance. Overall the breaker remains in very good condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
