Glenair Qwik-Ty Strain Relief Straight Rotatable Coupling 450FS001M24

Industrial

Strain Relief Rotatable Coupling For sale is one Glenair Qwik-Ty Strain Relief Straight Rotatable Coupling, part #450FS001M24. Part is new, sealed in the original packaging. Parts retail for $60+ each. Part #: 450FS001M24Series: 450Angle: StraightCable Entry: 1.144 in (29.1 mm)Brace...

$15.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Strain Relief Rotatable Coupling

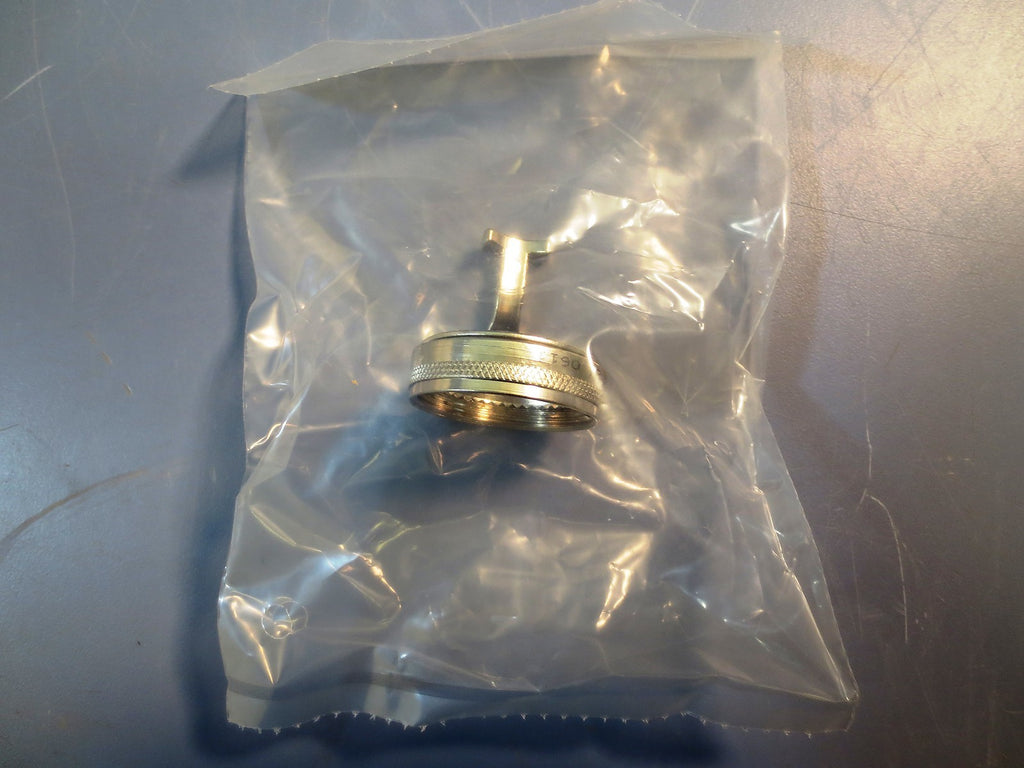

For sale is one Glenair Qwik-Ty Strain Relief Straight Rotatable Coupling, part #450FS001M24. Part is new, sealed in the original packaging. Parts retail for $60+ each.

Part #: 450FS001M24
Series: 450
Angle: Straight
Cable Entry: 1.144 in (29.1 mm)
Brace Length: 1.556 in (39.5 mm)

Shipping:

Free shipping represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
