Honeywell 31061221-001 Humidity and Temperature Recorder w/ Key Used
Industrial

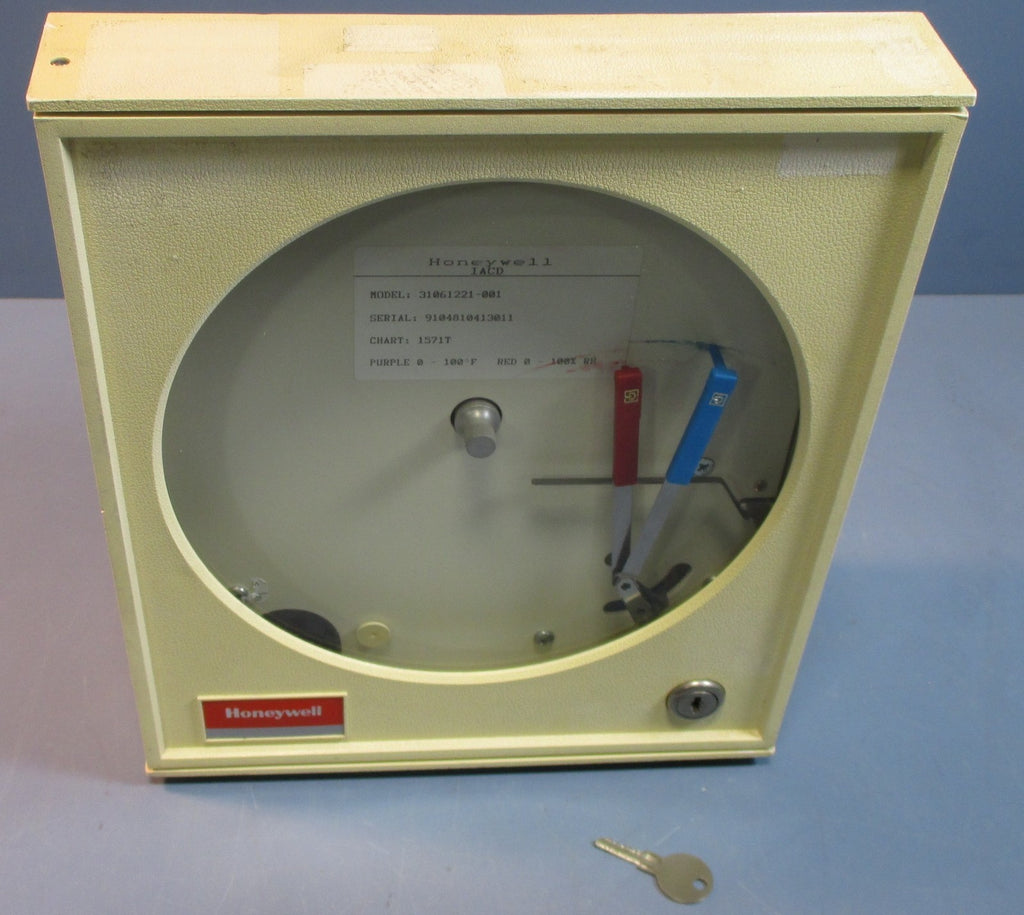

Humidity and Temperature Recorder For sale is a Honeywell 31061221-001 Humidity and Temperature Recorder with key. The recorder is used and came from a working environement but may be out of calibration. Some signs of wear, use, marking, stickering and/or discoloration may...
$28.79
×
Freight Quote
- Category: Industrial
|
Humidity and Temperature Recorder For sale is a Honeywell 31061221-001 Humidity and Temperature Recorder with key. The recorder is used and came from a working environement but may be out of calibration. Some signs of wear, use, marking, stickering and/or discoloration may show from the previous owner. None of the slight imperfections that show will impact the performance of the product. The recorder remains in very good overall condition.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
