Indramat Servo Drive TVM2.4-050-220 AC Servo R911251872 K31/97

Industrial

Servo Drive For sale is a Indramat Servo Drive, TVM2.4-050-220, AC Servo, R911251872, K31/97. This drive appears to be in very good condition. There are signs of light use such as light scratches on the terminals and mounting points. Overall the condition...

$719.99

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Servo Drive

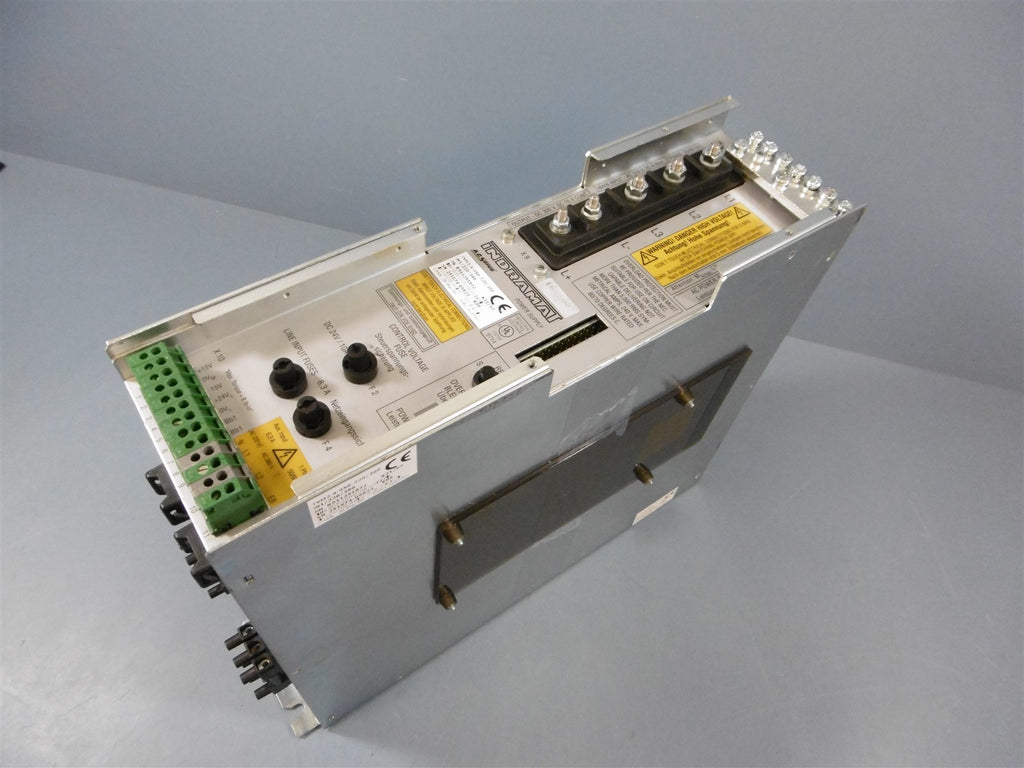

For sale is a Indramat Servo Drive, TVM2.4-050-220, AC Servo, R911251872, K31/97. This drive appears to be in very good condition. There are signs of light use such as light scratches on the terminals and mounting points. Overall the condition of this servo drive is excellent as it does appear to be lightly used as there are no signs of heavy wear or heavy use.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
