Ishida P-5286B P-5286'B 012-4213-05 Relay Circuit Board G2RX4 New
Ishida P-5286B P-5286'B 012-4213-05 Relay Circuit Board G2RX4 New
Industrial
Relay Board For sale is an Ishida P-5286B / P-5286'B, 012-4213-05 Relay Circuit Board, G2RX4. The unit is new but may show some cosmetic imperfections from the previous owner and tranpsort but nothing that will impact performance. Overall this board...
$251.99
×
Freight Quote
- Category: Industrial
Relay Board

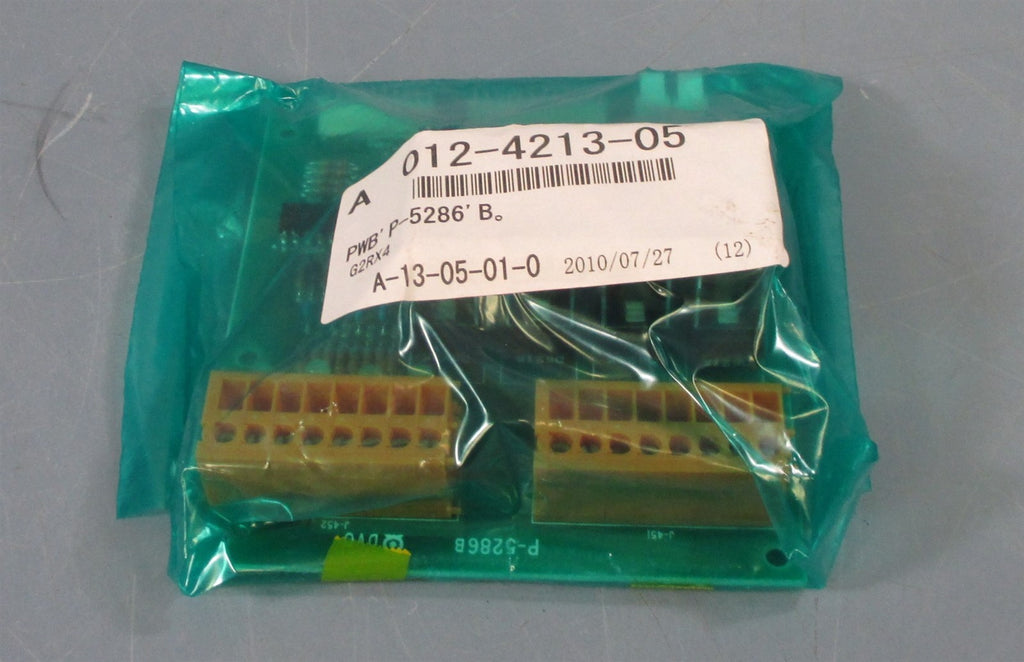

For sale is an Ishida P-5286B / P-5286'B, 012-4213-05 Relay Circuit Board, G2RX4. The unit is new but may show some cosmetic imperfections from the previous owner and tranpsort but nothing that will impact performance. Overall this board remains in excellent condition and will come as shown and with what is seen in the photos.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
