Lenze Motor MGFRKTA 090-22 A2E 170 2.54hp 220-240v 50/60HZ TD-3
Lenze Motor MGFRKTA 090-22 A2E 170 2.54hp 220-240v 50/60HZ TD-3
Industrial
Motor For sale is a Lenze Motor MGFRKTA 090-22, A2E 170, 2.54hp, 220-240v, 50/60HZ, TD-3, 24MM shaft diameter. This motor shows signs of either light use or shelf wear. There are scuffs, grease marks, surface rust on the shaft, and paint...
$220.49
×
Freight Quote
- Category: Industrial
Motor

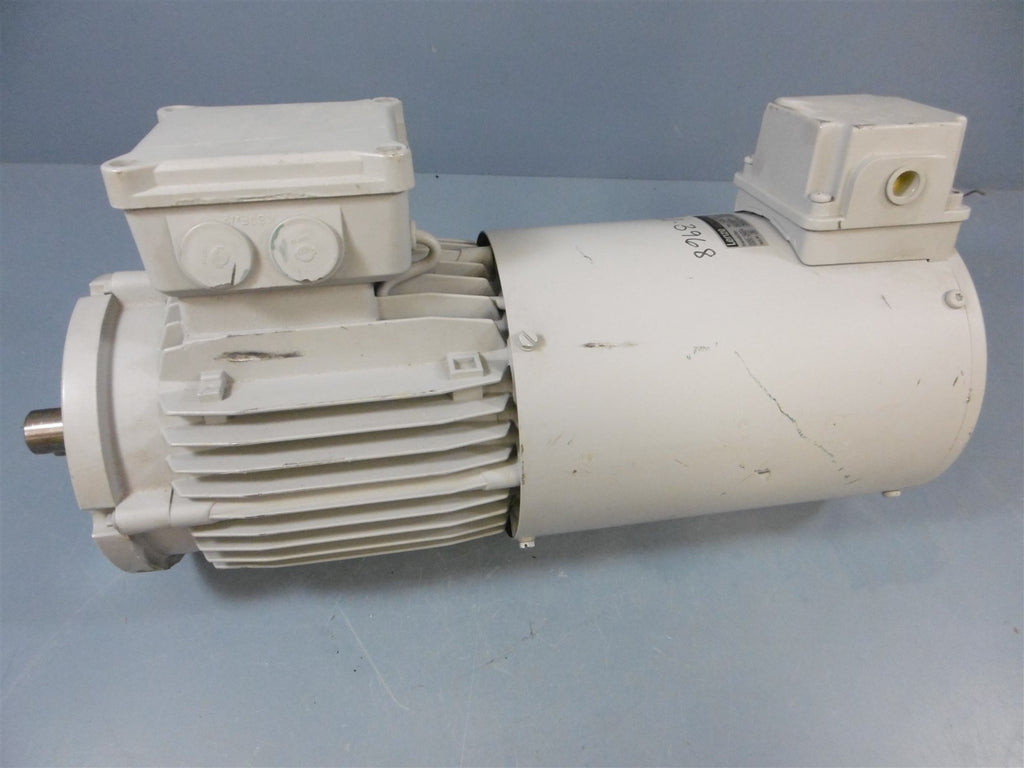

For sale is a Lenze Motor MGFRKTA 090-22, A2E 170, 2.54hp, 220-240v, 50/60HZ, TD-3, 24MM shaft diameter. This motor shows signs of either light use or shelf wear. There are scuffs, grease marks, surface rust on the shaft, and paint chips. Overall the condition of the motor is very good as it doesn't show signs of damage or heavy wear.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
