Lot 2 Dillin Engineering 035791 Flanged Timing Pulley 4 Mount Hole 22 Teeth NWOB
Industrial

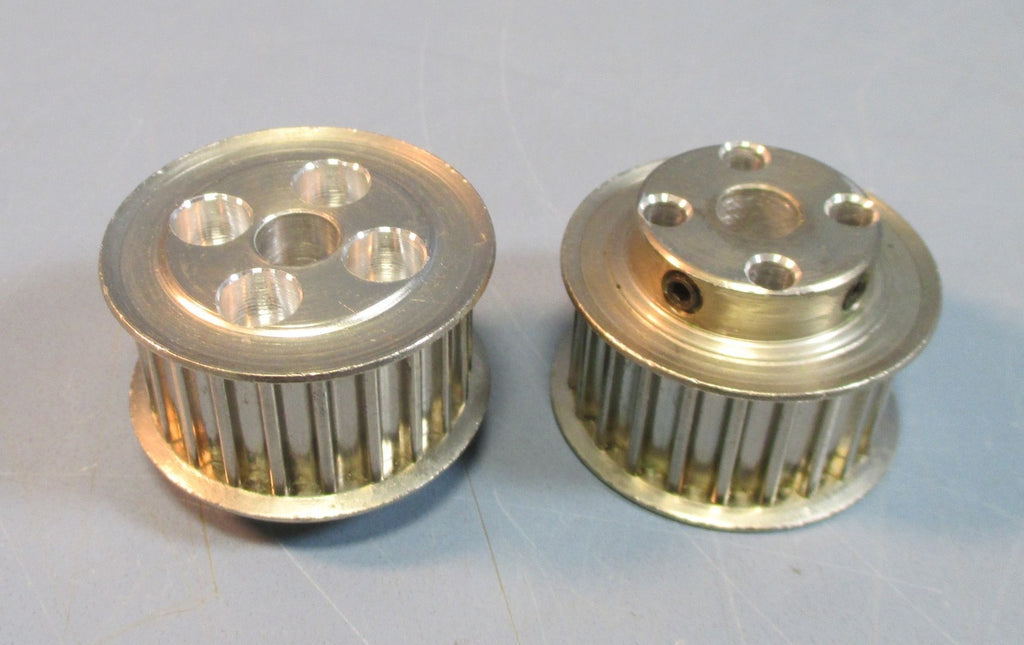

Timing Pulley For Sale is a Lot of 2 Dillin Engineering 035791 Flanged Timing Pulley 4 Mount Hole or Set Screw Bore with 22 Teeth. The pulleys are still in the original bag but will not ship that way. The...
$14.07
×
Freight Quote
- Category: Industrial
|
Timing Pulley For Sale is a Lot of 2 Dillin Engineering 035791 Flanged Timing Pulley 4 Mount Hole or Set Screw Bore with 22 Teeth. The pulleys are still in the original bag but will not ship that way. The label shows some signs of marking from the previous owner. The pulleys may show some signs of shelf wear but nothing that will impact the performance of the product. Overall the pulleys remain in excellent, ready to use condition.
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
