Lot 2 Dillin Engineering 038375 No Flange Timing Pulley 5mm Pitch 22 Teeth NWOB

Industrial

Timing Pulley For Sale is a Lot of 2 Dillin Engineering 038375 No Flange Timing Pulley 5mm Pitch, 22 Teeth, 19.85mm Wide w/ 8mm Set Screw Bore. The pulleys are new and came in the original bag but will no...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Timing Pulley

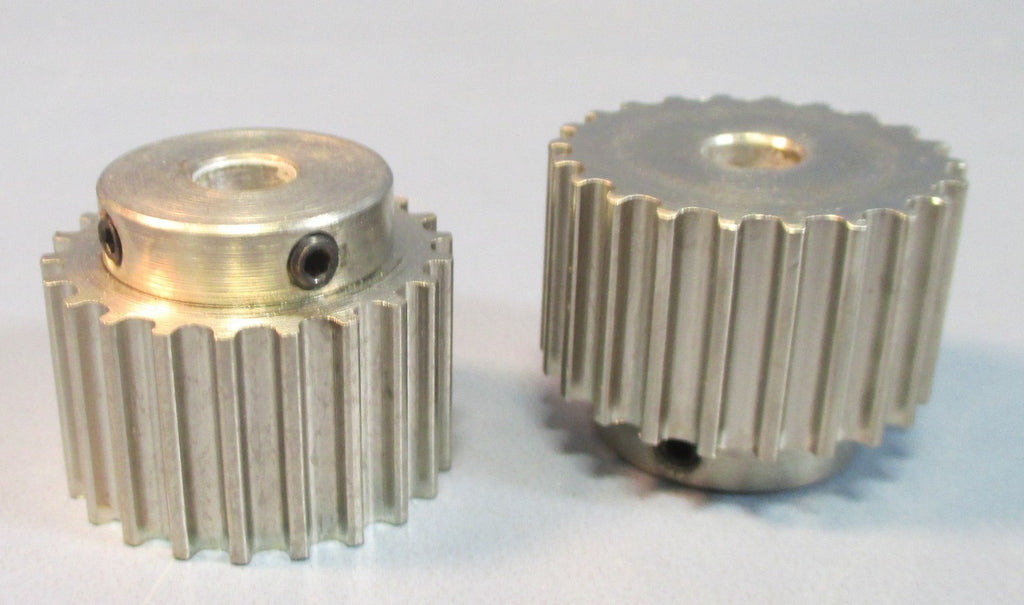

For Sale is a Lot of 2 Dillin Engineering 038375 No Flange Timing Pulley 5mm Pitch, 22 Teeth, 19.85mm Wide w/ 8mm Set Screw Bore. The pulleys are new and came in the original bag but will no ship in it. The label shows signs of marking from the previous owner. The pulleys show some light signs of shelf wear, mostly scratching, but nothing that will impact product performance. Overall the pulleys remain in excellent, ready to use condition.
Width Through Bore: 26.2mm

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
