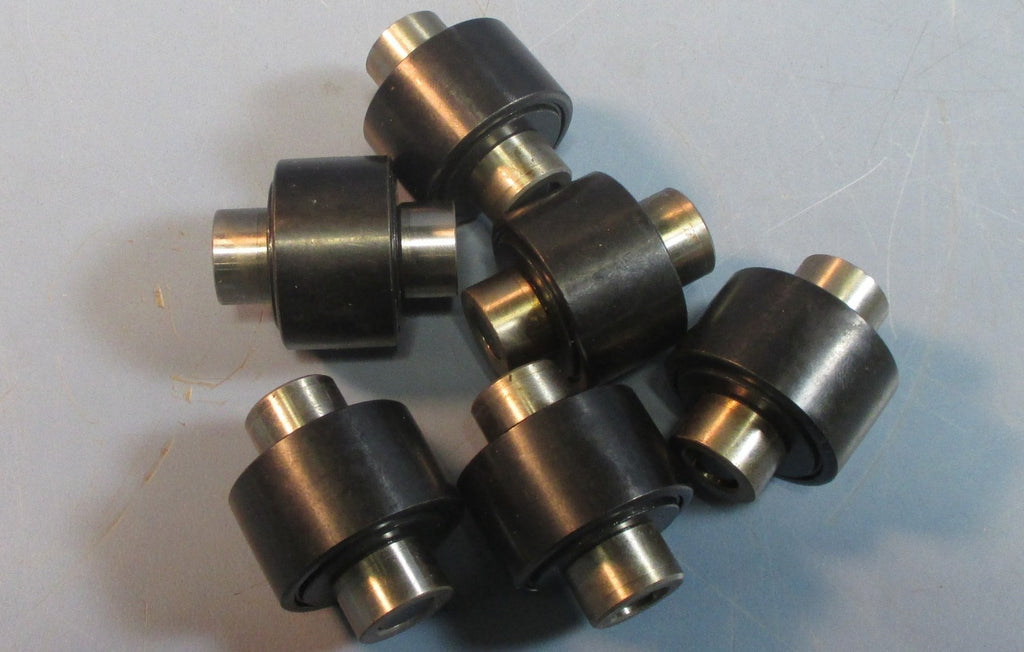

Lot 6 Torrington YCRSC-20 Roller Bearing w/ 3/8" Shaft & 5/8" OD Bushings Used
Industrial
Roller Bearings For sale is a Lot of 6 Torrington YCRSC-20 Roller Bearing with 3/8" Shaft and 5/8" OD Bushings. The bearings may have been lightly used by the previous owner and are no longer in the original package. The...
$19.19
×
Freight Quote
- Category: Industrial
|
Roller Bearings For sale is a Lot of 6 Torrington YCRSC-20 Roller Bearing with 3/8" Shaft and 5/8" OD Bushings. The bearings may have been lightly used by the previous owner and are no longer in the original package. The bearings may show some light signs of wear, scratching and/or discoloration from the previous owner. None of these slight wear imperfections that show will impact the performance of the product. Overall the bearing remain in very good, ready to use condition.
Charged according to location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
