Lot of 15 Hitachi 2060HNP RL W/SA1 Tabbed Roller Chain Link 1-1/2" Pitch NWOB

Industrial

Chain Link For sale is a Lot of 15 Hitachi 2060HNP RL W/SA1 Tabbed Roller Chain Link 1-1/2" Pitch. The links are new but no longer in the original package. Some light signs of shelf wear may show but nothing that...

$19.19

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Chain Link

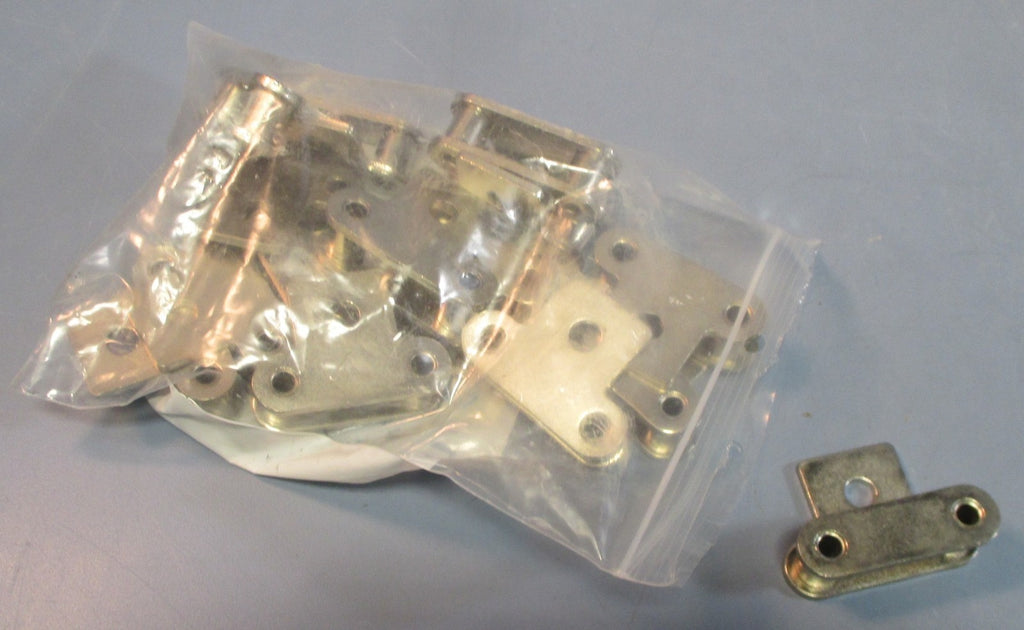

For sale is a Lot of 15 Hitachi 2060HNP RL W/SA1 Tabbed Roller Chain Link 1-1/2" Pitch. The links are new but no longer in the original package. Some light signs of shelf wear may show but nothing that will impact product performance. Overall the links remain in excellent, ready to use condition.
Link Outside Width: 3/4"

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
