Lot of 2 Martin Taper Lock Bushings Model 1610 1 5/8 1-5/8" Bore NWOB
Industrial
Tapered Bushings You are bidding on a lot of 2 Martin Taper Lock Bushings Model 1610 1 5/8. The bushings are new but they do not come with their original packaging. There is some writing in marker present on the...
$11.51
×
Freight Quote
- Category: Industrial
|

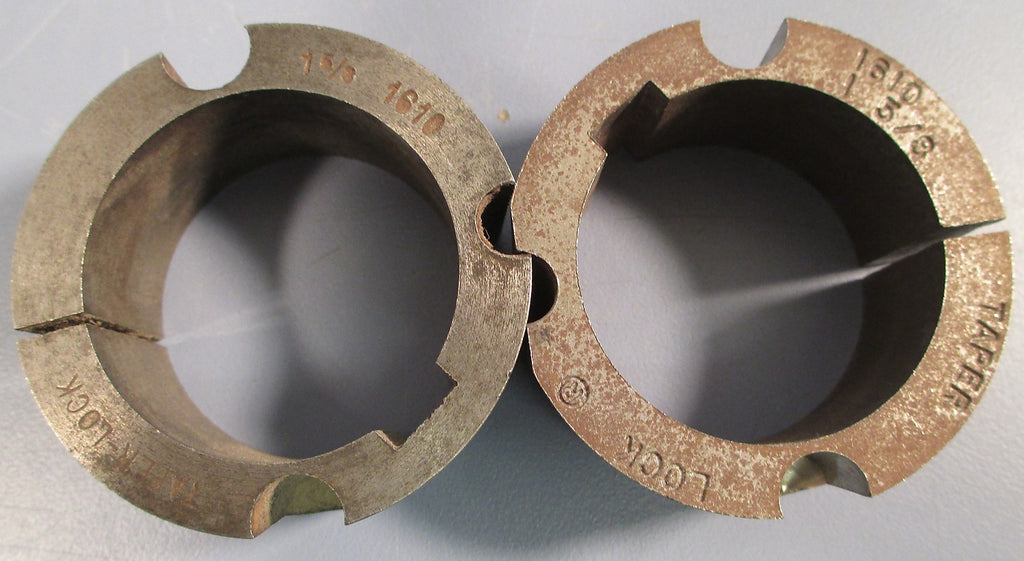

Tapered Bushings You are bidding on a lot of 2 Martin Taper Lock Bushings Model 1610 1 5/8. The bushings are new but they do not come with their original packaging. There is some writing in marker present on the bushings, as well as some cosmetic wear due to shelf wear. 1-5/8" bore
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
