Lot of 20 Glenair Inc. 559-002-02 EMI Environmental Gasket Conductive New
Industrial

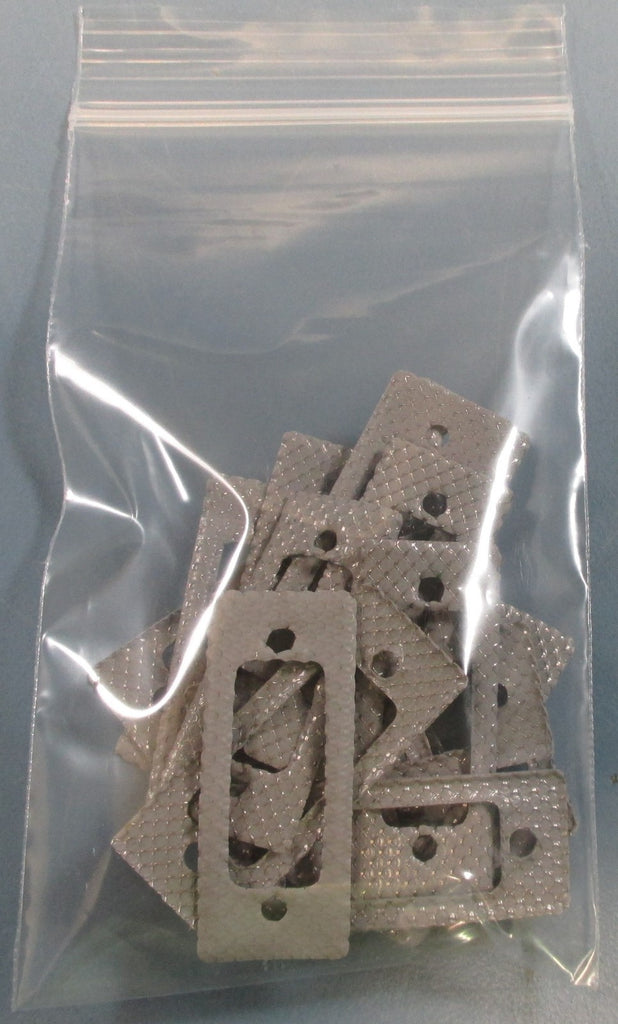

EMI Gasket You are bidding on a lot of 20 New Glenair Inc. 559-002-02 EMI Environmental Gasket Conductive. Environmental Gasket for D-Subminiature Backshells. Gasket to fit shell size A/15.Length: 1.810 InchWidth: .740 InchCenter to center screw hole: 1.310 Inch Shipping:...
$24.99
×
Freight Quote
- Category: Industrial
|
EMI Gasket You are bidding on a lot of 20 New Glenair Inc. 559-002-02 EMI Environmental Gasket Conductive. Environmental Gasket for D-Subminiature Backshells. Gasket to fit shell size A/15.
Represents shipping within the lower 48 States ONLY, insurance included. All others will be charged according to their location. Sales tax of 8% will be charged to New York State residents and businesses We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions. |
