Lot of 3 Kennametal Erickson Collet 15/64 C-K-O, 200DA0234 New

Industrial

Collet You are bidding on a lot of 3 Kennametal Erickson Collet 15/64 C-K-O Model 200DA0234. Items are new and still in the protective plastic sleeve but sleeve may show some signs of shelf wear from the previous owner. Collets...

$17.27

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Collet

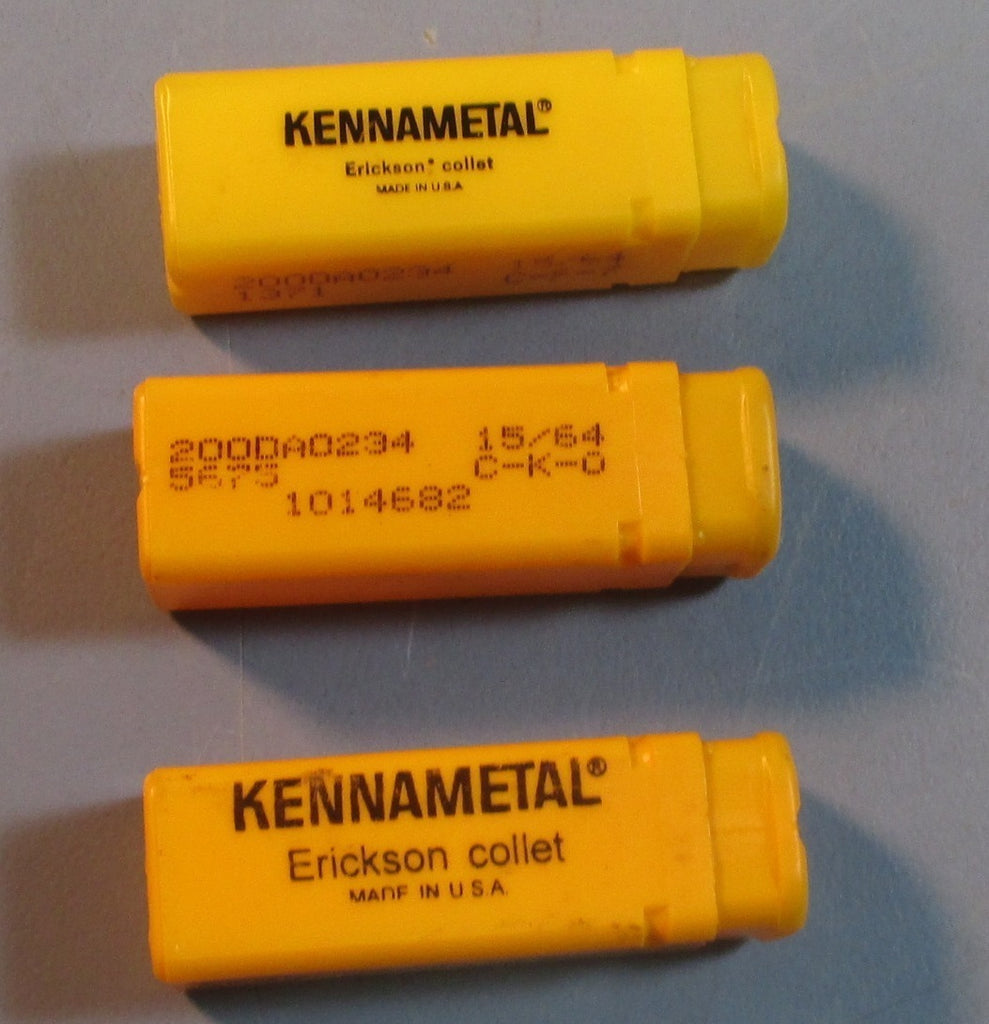

You are bidding on a lot of 3 Kennametal Erickson Collet 15/64 C-K-O Model 200DA0234. Items are new and still in the protective plastic sleeve but sleeve may show some signs of shelf wear from the previous owner. Collets remain in excellent functional condition.

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
