Lot of 3 Scully Jones 09324 SJ-9A, SJ-BB #13 Drive 4.70MM Dia. Drill Driver New

Industrial

Drill Driver You are bidding on a lot of 3 Scully Jones 09324 SJ-9A, SJ-BB #13 Drive 4.70MM Diameter Drill Driver. Item is new but not in the original package and may show some signs of shelf wear from the...

$17.27

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Drill Driver

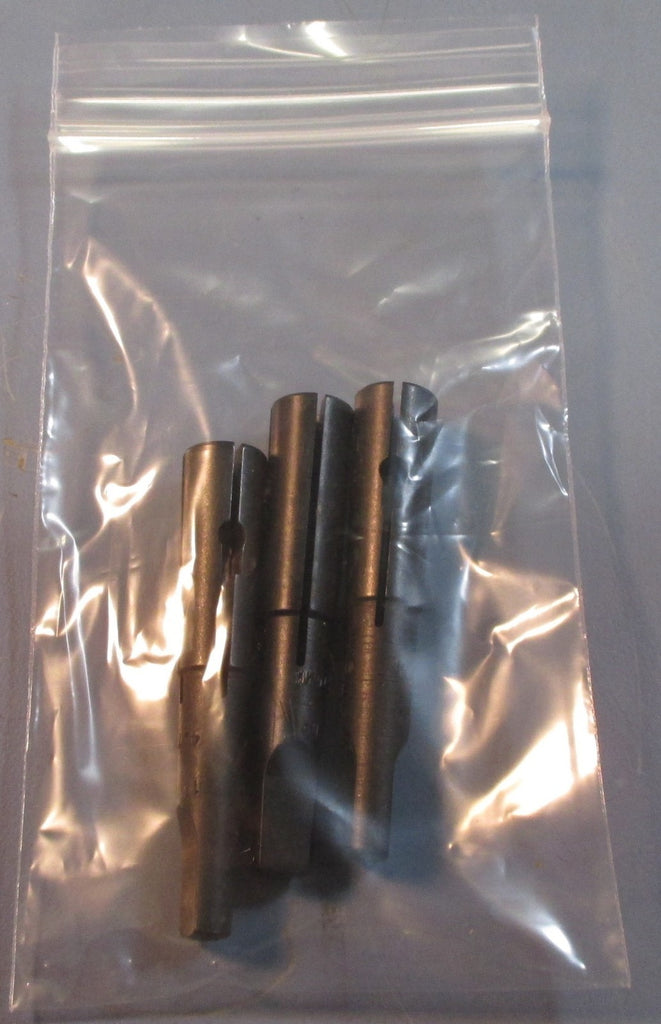

You are bidding on a lot of 3 Scully Jones 09324 SJ-9A, SJ-BB #13 Drive 4.70MM Diameter Drill Driver. Item is new but not in the original package and may show some signs of shelf wear from the previous owner. None of the imperfections are in areas that will impact the performance of the product.
Outside Morse Taper Size: 1MT
Drill Size: #13 (4.70MM)
Projection (Inch): 0.19
Drill Depth (Inch): 0.75
Max Drill Tang Thickness (Inch): 0.094
Min Drill Tang Thickness (Inch): 0.090
Drill Tang Length (Inch): 0.28
Runout Maximum (Inch): 0.002

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
