Lot of 5 Moyno BH114Q O-Rings Approx 9.25" OD, 1/8" Thick NWOB

Industrial

O-Ring For Sale is a Lot of 5 Moyno BH114Q O-Ring Approx 9.25" OD, 1/8" Thick. These o-rings appear new but are not in the original package. Overall the rings remain in excellent condition. Shipping: Represents shipping within the lower...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

O-Ring

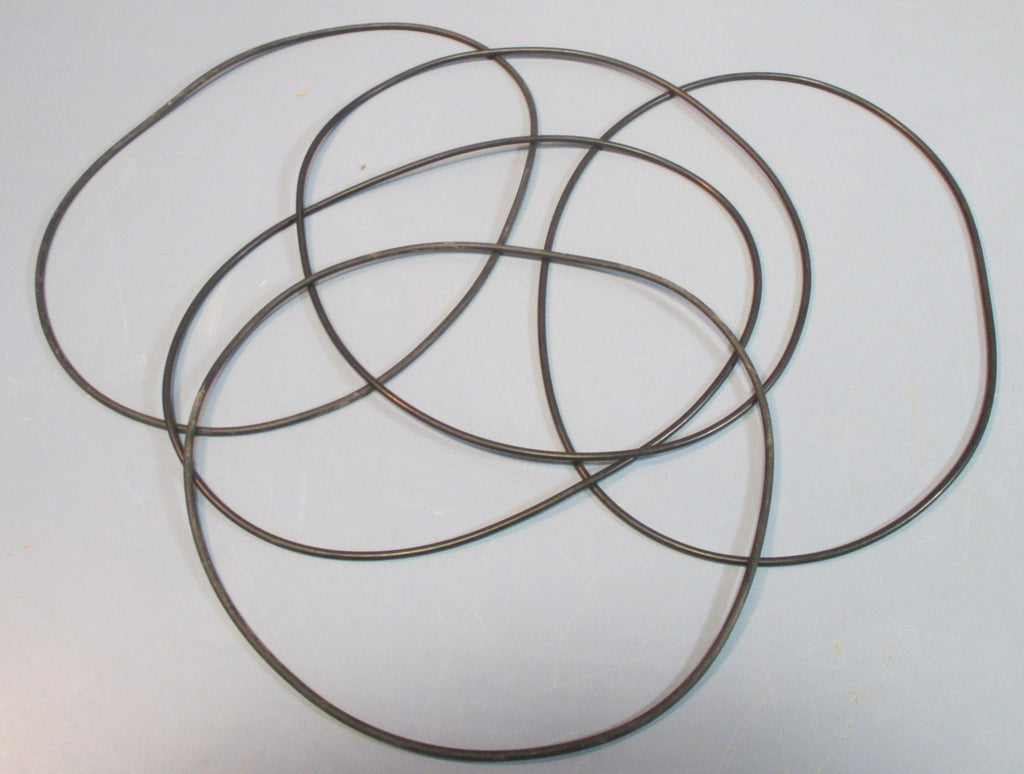

For Sale is a Lot of 5 Moyno BH114Q O-Ring Approx 9.25" OD, 1/8" Thick. These o-rings appear new but are not in the original package. Overall the rings remain in excellent condition.

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
