Lot of 5 Nuventix 12 VDC SynJet Par-38 SP38S-CM012-009 Coolers New

Industrial

Lot of 5 Coolers For sale is one lot of 5 Nuventix 12 VDC coolers, model SP38S-CM012-009. Items are new, but out of their original packages. Units show sings of minor shelfwear, but nothing that will affect their function.SynJetPAR-3812VDC Shipping:...

$25.59

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Lot of 5 Coolers

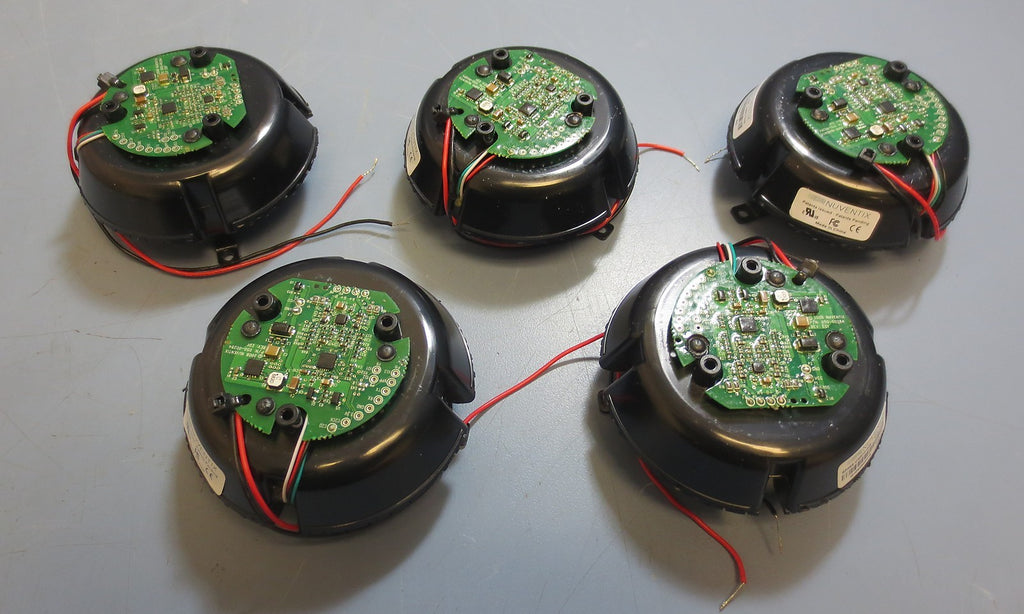

For sale is one lot of 5 Nuventix 12 VDC coolers, model SP38S-CM012-009. Items are new, but out of their original packages. Units show sings of minor shelfwear, but nothing that will affect their function.

SynJet
PAR-38
12VDC

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
