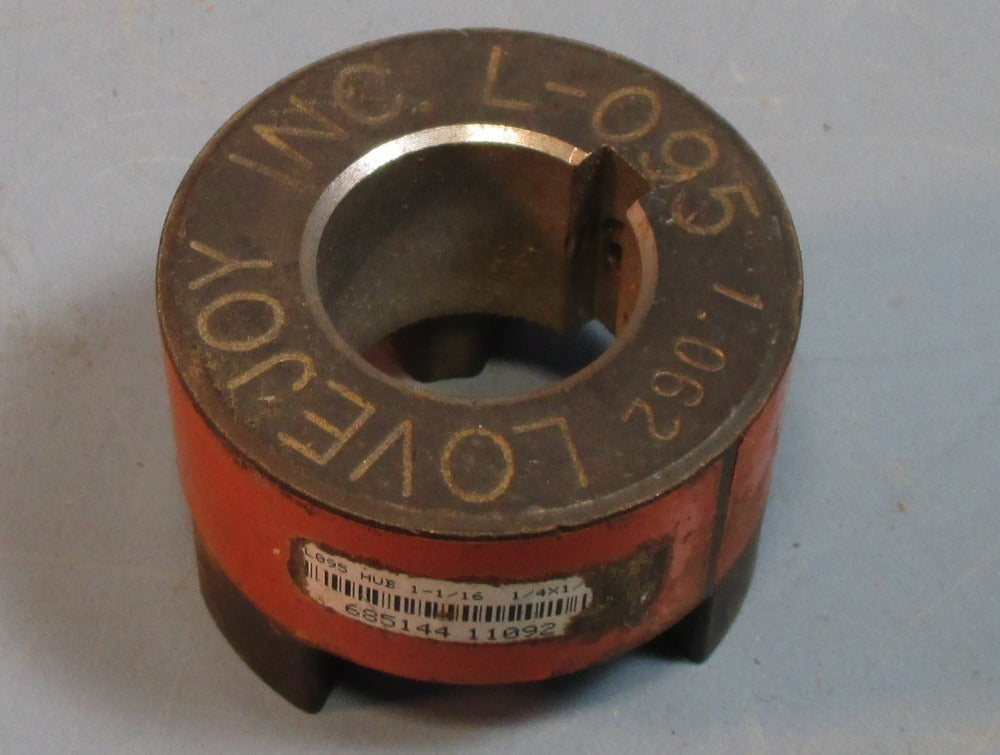

LoveJoy L095 Coupler Hub Half 1.062" Bore 1-1/16" w/ 1/4x1/8"KW NWOB

Industrial

Coupler Hub Half For sale is a LoveJoy L095, Coupler Hub Half 1.062" Bore with 1/4 x 1/8" Keyway. The item appears new but is not in the original packaging. Some signs of shelf wear show fromthe previous owner but...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Coupler Hub Half

For sale is a LoveJoy L095, Coupler Hub Half 1.062" Bore with 1/4 x 1/8" Keyway. The item appears new but is not in the original packaging. Some signs of shelf wear show fromthe previous owner but nothing that should impact the performance of the product. Overall the coupler hub half remains in very good condition.

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
