M.C Motion Control AG BAC118M30/3/RA 8.5 Nm Stall, 33 Nm Max Servo Motor Used
M.C Motion Control AG BAC118M30/3/RA 8.5 Nm Stall, 33 Nm Max Servo Motor Used
Industrial
Servo Motor For sale is a M.C Motion Control AG BAC118M30/3/RA Servo Motor 8.5 Nm Stall Torque, 6.0 Cont. Torque and 33 Nm Max Torque. The motor is used and came from a working environment. Some signs of use, wear,...
$188.99
×
Freight Quote
- Category: Industrial
Servo Motor

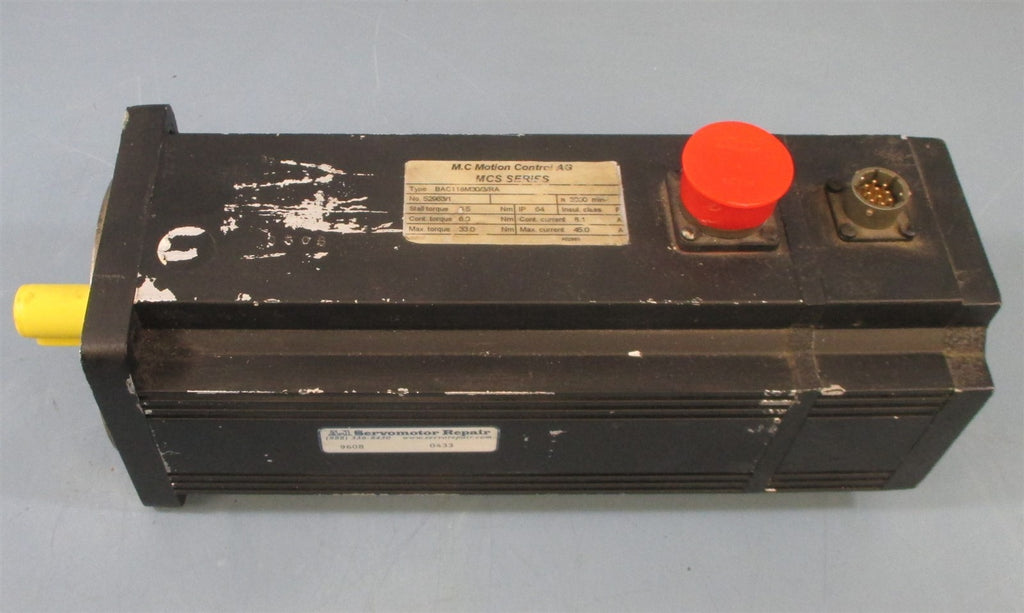

For sale is a M.C Motion Control AG BAC118M30/3/RA Servo Motor 8.5 Nm Stall Torque, 6.0 Cont. Torque and 33 Nm Max Torque. The motor is used and came from a working environment. Some signs of use, wear, mounting and other cosmetic imperfections from use and transport may show but nothing that should impact the overall performance. Overall this motor remains in good condition.
Shaft OD: 3/4"
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
