Markem-Imaj 31A65A-PB SD2 Head Drive PCB 31A65.A Circuit Board NIB
Markem-Imaj 31A65A-PB SD2 Head Drive PCB 31A65.A Circuit Board NIB
Industrial
Head Drive Board For sale is a Markem-Imaj 31A65A-PB SD2 Head Drive PCB 31A65.A Circuit Board. The board is new and still in the original package. The box has been opened and the board will come with what is seen...
$244.79
×
Freight Quote
- Category: Industrial
Head Drive Board

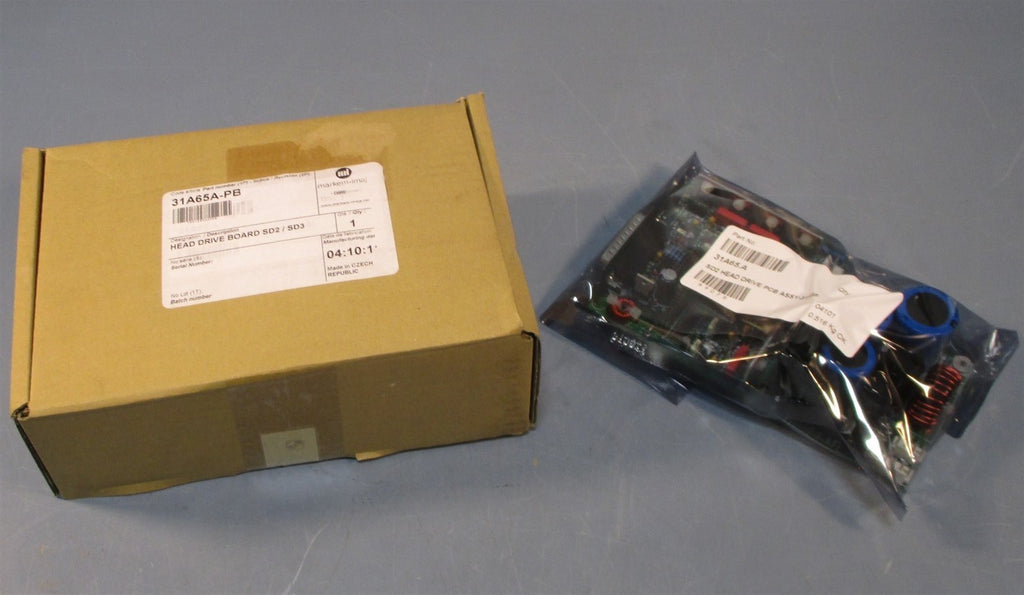

For sale is a Markem-Imaj 31A65A-PB SD2 Head Drive PCB 31A65.A Circuit Board. The board is new and still in the original package. The box has been opened and the board will come with what is seen in the photos. The box may also show cosmetic imperfections from the previous owner and transport. The board remains in excellent condition and has been kept in the static protective bag.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
