Martin 50BS15 1 7/16 Bore to Size Sprocket 15 Teeth for #50 Chain NIB

Industrial

Sprocket For Sale is a Martin 50BS15 1 7/16 Bore to Size Sprocket with 15 Teeth for #50 Chain. The sprocket is new and still in the original box. The box may show some signs of shelf wear, marking, tearing...

$12.79

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Sprocket

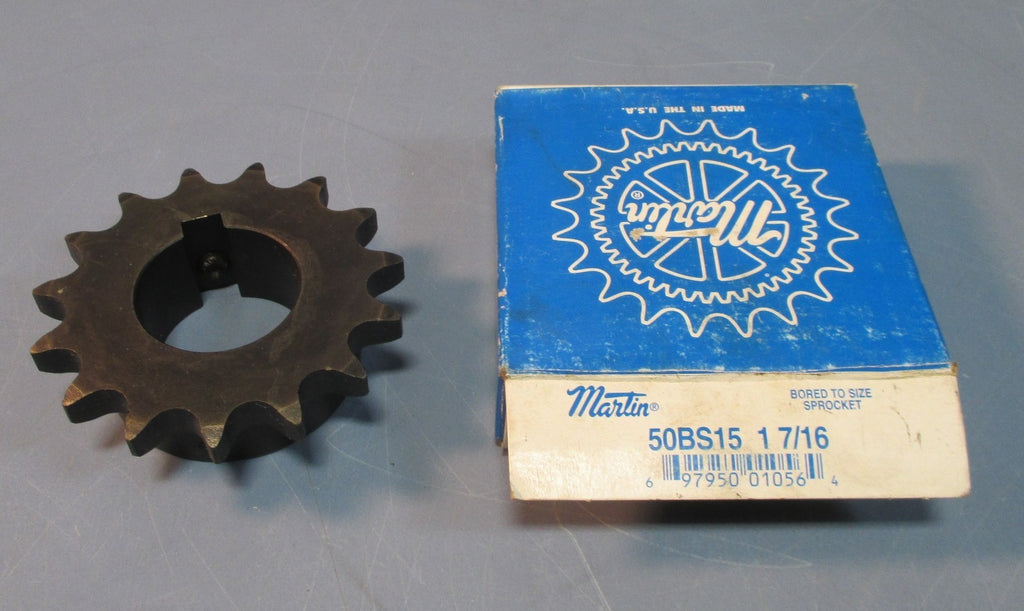

For Sale is a Martin 50BS15 1 7/16 Bore to Size Sprocket with 15 Teeth for #50 Chain. The sprocket is new and still in the original box. The box may show some signs of shelf wear, marking, tearing and/or discoloration from the previous owner. The sprocket remains in excellent, ready to use condition overall.
Rough Measurements:
Total OD: 3-1/4"
Tooth Valley OD: 2-9/16"
Pitch: 5/8"
Width Through Bore: 1"

Shipping:

Represents shipping within the lower 48 States ONLY, insurance included.

All others will be charged according to their location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
