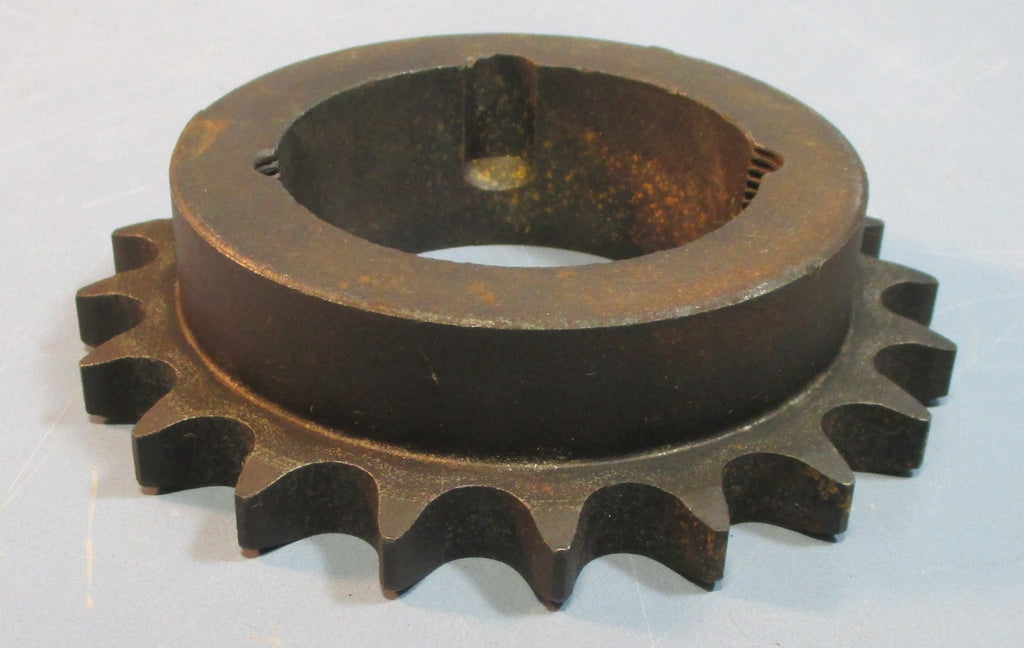

Martin 60BTB20H 2012 Taper Lock Sprocket for #60 Chain w/ 20 Teeth Used

Industrial

Sprocket For sale is a Martin 60BTB20H 2012 Taper Lock Sprocket for #60 Chain with 20 Teeth. The sprocket appears to be very lightly used based on very slight but consistant signs of wear around the teeth. The sprocket may...

$24.31

Quantity:

In Inventory:

Category: Industrial

More Info
Reviews

Sprocket

For sale is a Martin 60BTB20H 2012 Taper Lock Sprocket for #60 Chain with 20 Teeth. The sprocket appears to be very lightly used based on very slight but consistant signs of wear around the teeth. The sprocket may show some signs of wear, use, scratching, light denting and/or discoloration from the previous owner. None of the slight imperfections that show will impact the performance of the product. Overall the sprocket remains in very good, ready to use condition.
Rough Measurements:
Total Diameter: 5-3/16"
Tooth Valley OD: 4-5/16"
Width Through Bore: 1-3/16"
Smaller Taper ID: 2-9/16"
Larger Taper ID: 2-3/4"
Pitch: 3/4"

Shipping:

Charged according to location.

Sales tax of 8% will be charged to New York State residents and businesses

We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
