Merrick BMKM21689-1 REV 3 Circuit Board Card LT104
Merrick BMKM21689-1 REV 3 Circuit Board Card LT104
Industrial
Circuit board For sale is a Merrick BMKM21689-1, REV 3, Circuit Board Card, LT104. This board was removed from a unit and appears to be in excellent overall condition. There are no signs of heavy wear or damage on the unit....
$100.00
×
Freight Quote
- Category: Industrial
Circuit board

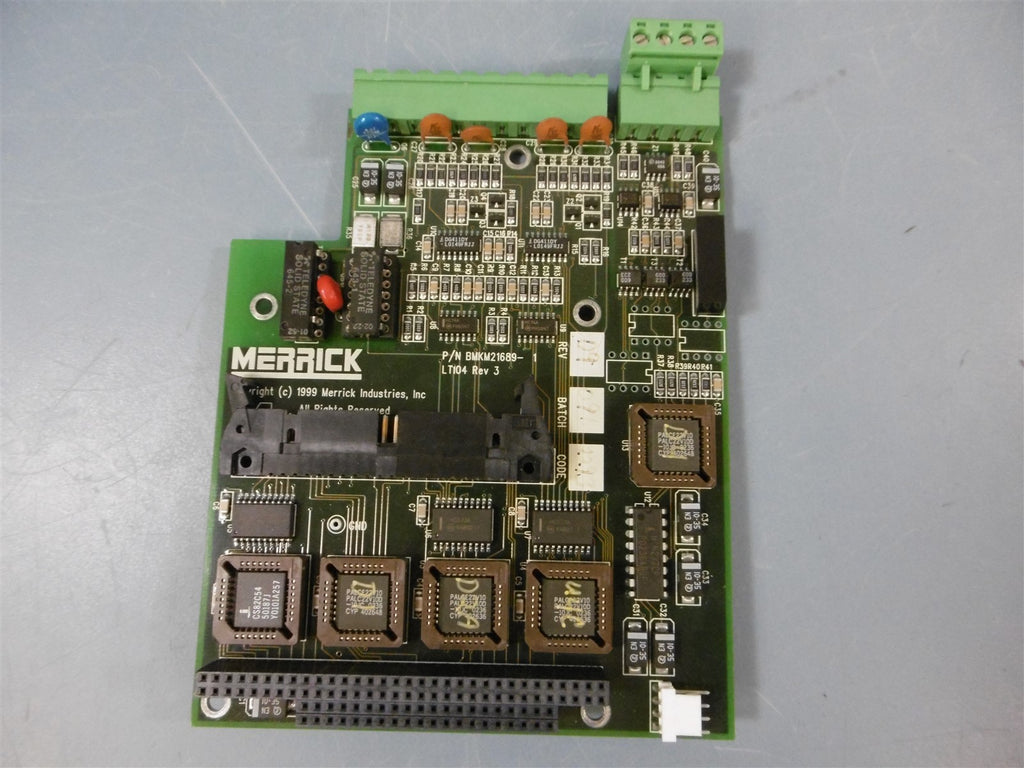

For sale is a Merrick BMKM21689-1, REV 3, Circuit Board Card, LT104. This board was removed from a unit and appears to be in excellent overall condition. There are no signs of heavy wear or damage on the unit. Overall the condition is excellent. Written REV, Batch and Code may differ from what is pictured. We have REV 9, 11 and 12
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
