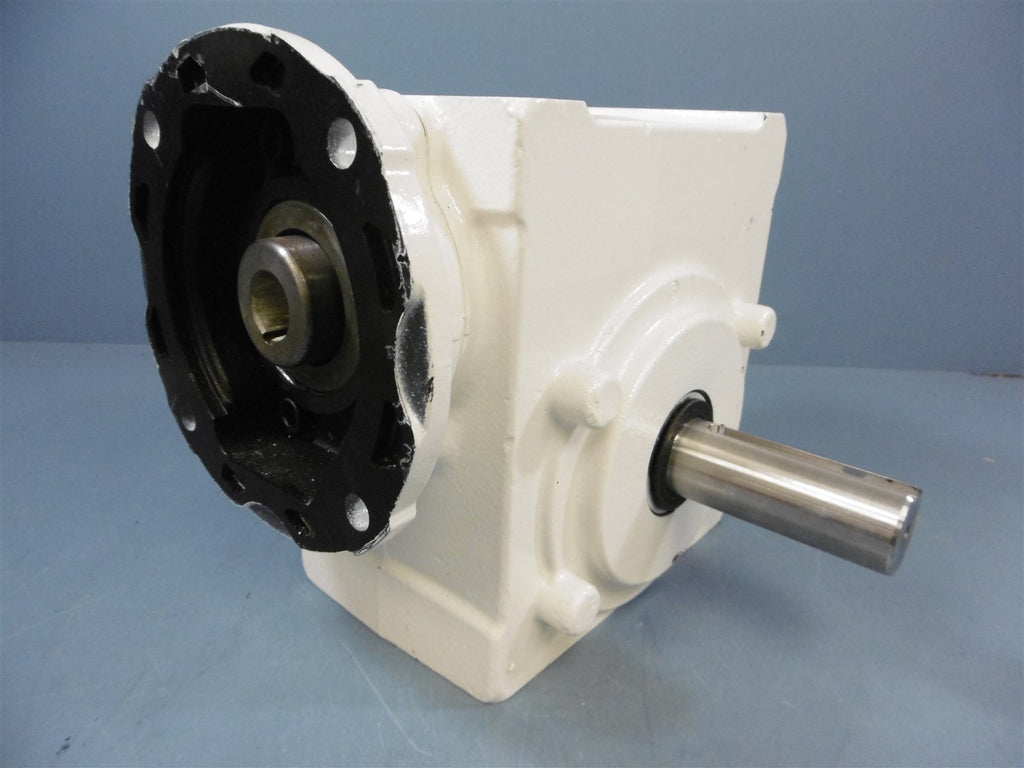

New Dodge Tigear2 Reducer 30QZ20R14WP 20:1 2345TQ Out 3.81HP In 1-5/16" Shaft
New Dodge Tigear2 Reducer 30QZ20R14WP 20:1 2345TQ Out 3.81HP In 1-5/16" Shaft
Industrial
Reducer For sale is a New Dodge Tigear2 Gear Reducer, 30QZ20R14WP, 20:1, 2345TQ Out, 3.81HP In, 1-5/16" Shaft. This reducer appears to be brand new as there are no typical signs of use or wear. There are signs of light shelf...
$157.49
×
Freight Quote
- Category: Industrial
Reducer
For sale is a New Dodge Tigear2 Gear Reducer, 30QZ20R14WP, 20:1, 2345TQ Out, 3.81HP In, 1-5/16" Shaft. This reducer appears to be brand new as there are no typical signs of use or wear. There are signs of light shelf wear such as paint chips, light scratches, grease marks and scuffs. Overall the condition of this reducer is excellent.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
