New Endress+Hauser Multicap DC12TA-K11FC1BMS1 4.5" FEC 22
New Endress+Hauser Multicap DC12TA-K11FC1BMS1 4.5" FEC 22
Industrial
Probe For sale is a New Endress+Hauser Multicap DC12TA-K11FC1BMS1, 4.5" probe, FEC 22, XP-IS-DIP/I. This probe appears to be new in box with no signs of use or wear. Overall the condition of the probe is excellent although shows marker marks...
$449.99
×
Freight Quote
- Category: Industrial
Probe

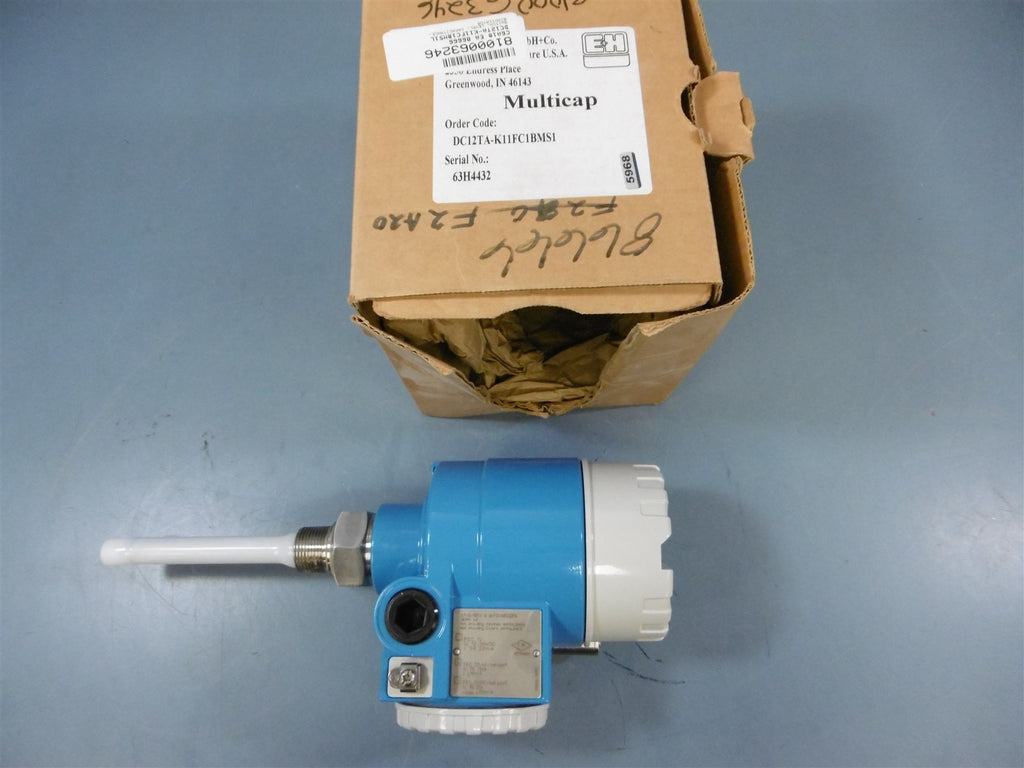

For sale is a New Endress+Hauser Multicap DC12TA-K11FC1BMS1, 4.5" probe, FEC 22, XP-IS-DIP/I. This probe appears to be new in box with no signs of use or wear. Overall the condition of the probe is excellent although shows marker marks and light scuffs.
Shipping:
Charged according to location.
Sales tax of 8% will be charged to New York State residents and businesses
We at eTech Surplus strive to honestly and accurately describe each item we sell. Please feel free to contact us with any questions.
